Processor
| Maximum number of SMP processors |
1 |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x16 slots |
1 |
| PCI slots |
1 |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
DIMM |
Internal I/O
| USB 2.0 connectors |
2 |
| Serial port headers |
1 |
| Front panel audio connector |
Y |
| CPU fan connector |
Y |
| Number of SATA II connectors |
2 |
| ATX Power connector (24-pin) |
Y |
Performance
| Component for |
PC |
| Cooling type |
Active |
| Audio system |
HD |
| Motherboard chipset family |
VIA |
Packaging content
| Quick installation guide |
Y |
| Drivers included |
Y |
Back panel I/O ports
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
Other features
| Processor front side bus |
800 MHz |
Graphics
| Graphics adapter family |
VIA |
| Maximum graphics adapter memory |
512 MB |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Graphics |
Chrome9 HD IGP |
| Chipset |
VIA VX900 |

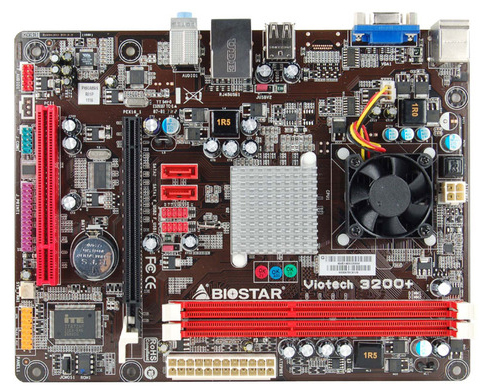

VIA VX900, VIA C7-D (1.8 GHz), DDR3, SATA II, VIA Chrome9 HD IGP, USB 2.0, Fast Ethernet
- On board with VIA C7-D 1.8 GHz;
- Supports FSB 800MHz;
- VIA Chrome9 HD IGP;
- Integrated High Definition audio;
- VIA Power Saver Technology;
- Supports BIO-Remote 2 Technology;
- Supports Charger Booster Technology.
