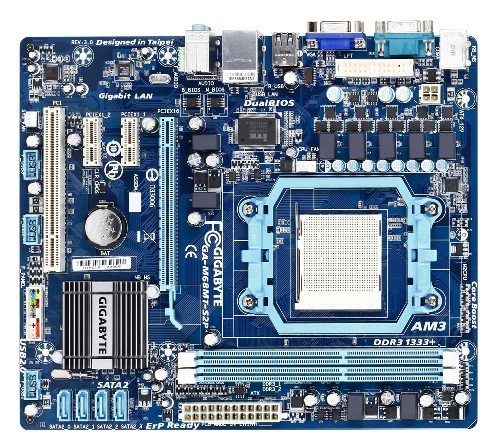

Gigabyte GA-M68MT-S2P

Gigabyte GA-M68MT-S2P

MPN: GA-M68MT-S2P-R3
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ...
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top
GA-M68MT-S2P-R3 DISCLAIMER: these specs are for revision 3.0.

<b>Get Ready to Unleash the Power of AMD 6-Core CPU</b>
GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
* Detailed support information, please refer the “CPU Support List”.
<b>On/Off Charge Technology</b>
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
<b>Core Boost Support</b>
GIGABYTE’s Core Boost technology provides an easy way for users unlocking the CPU’s hidden cores via the EasyTune6 utility. Without any complicated setting needed in BIOS, users can experience a phenomenal performance upgrade right away.
*The ability of unlocking the hidden CPU cores might vary by different processors.
<b>Introduction</b>
The GA-M68MT-S2P, based on NVIDIA GeForce7025/ nForce630a chipset and supports new generation of 45nm AMD AM3 Phenom II/ AthlonII processors, integrated DirectX 9 graphics engine, DDR3 memory controller, PCI Express interface and so on. With the 50000 hours Japanese solid capacitors for CPU VRM design, the GA-M68MT-S2P is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
<b>Supports next generation of 45nm AMD AM3 CPU</b>
This motherboard features Split Power Plane, 4+1 phase VRM to support AMD's latest 45nm AM3 Athlon II/ Phenom II series processors, delivering greater performance enhancements and the ultimate in hardware scalability.
* If you install AMD AM3 CPU on this motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3 CPU will not be impacted. Please refer "CPU Support List" for more information.
<b>NVIDIA GeForce 7025 / NVIDIA nForce 630a GPU</b>
The brand new NVIDIA<sup>&reg;</sup> GeForce 7025 / NVIDIA<sup>&reg;</sup> nForce 630aGPU features CineFX™ 3.0 Engine. This unique combination of 7025 GPU creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
<b>PCI Express Interface</b>
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
<b>SATA 3Gb/s & RAID</b>
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA<sup>&reg;</sup> RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
<b>DualBIOS™ - Patented Dual Hardware BIOS Protection</b>
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
<b>Qualified for Windows<sup>&reg;</sup> 7</b>
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft<sup>&reg;</sup>, setting the standard for future Windows 7 certified motherboards...
<b>ErP Lot 6 support</b>
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.3X USB power delivery for greater compatibility and extra power for USB devices
On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
Supports AMD AM3 Phenom II/ Athlon II processors
Exclusive Core Boost technology to unleash CPU performance
Next Generation Ultra Durable 2 and 4+1 Phase CPU Power design
Solid capacitors design for CPU VRM
Hi-def 108dB Signal-to-noise ratio Blu-ray DVD audio playback
DualBIOS™ protection with 3TB+ HDD boot up capability
Integrated NVIDIA CineFX 3.0 graphics (DX9)
Ultimate graphics performance with PCI-E x16 interface
Integrated SATA 3Gb/s with RAID function
Features high speed Gigabit Ethernet
Compatible with Window 7 to deliver the best operation experience
Meet European Union ErP(Energy-related-Products) requirement
