Design
| Supported motherboard form factors |
Micro-ATX, Mini-ITX |
| Number of 3.5" bays |
3 |
| Number of internal 3.5" bays |
3 |
| Side window |
Y |
| Illumination location |
Side |
| Number of 2.5" bays |
3 |
| Maximum graphics card length |
290 mm |
| Maximum CPU cooler height |
120 mm |
| Maximum PSU length |
225 mm |
| Illumination |
Y |
| Number of expansion slots |
4 |
| Form factor |
Cube |
| Type |
PC |
Cooling
| Top fans diameters supported |
120 mm |
| Maximum front fans |
2 |
| Side fans diameters supported |
120 mm |
| Rear fans diameters supported |
80, 120 mm |
| Maximum side fans |
1 |
| Maximum rear fans |
2 |
| Maximum top fans |
2 |
| Maximum bottom fans |
2 |
| Rear fans installed |
1x 120 mm |
| Front fans diameters supported |
120 mm |
| Front fans installed |
2x 120 mm |
| Bottom fans diameters supported |
120 mm |
Storage
| Supported hard disk drive sizes |
2.5, 3.5 " |
Weight & dimensions
| Depth |
397 mm |
| Weight |
5600 g |
| Width |
260 mm |
| Height |
320 mm |
Ports & interfaces
| Audio input |
Y |
| Audio output |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Ergonomics
| Reset button |
Y |
| LED indicators |
Y |
Additionally
| Illumination colour |
Blue |
| Colour of product |
White |
Micro-ATX, 3 x 3.5", 3 x 2.5", 397 x 260 x 320mm, 5.6kg
A compact PC case made for maximum cooling.

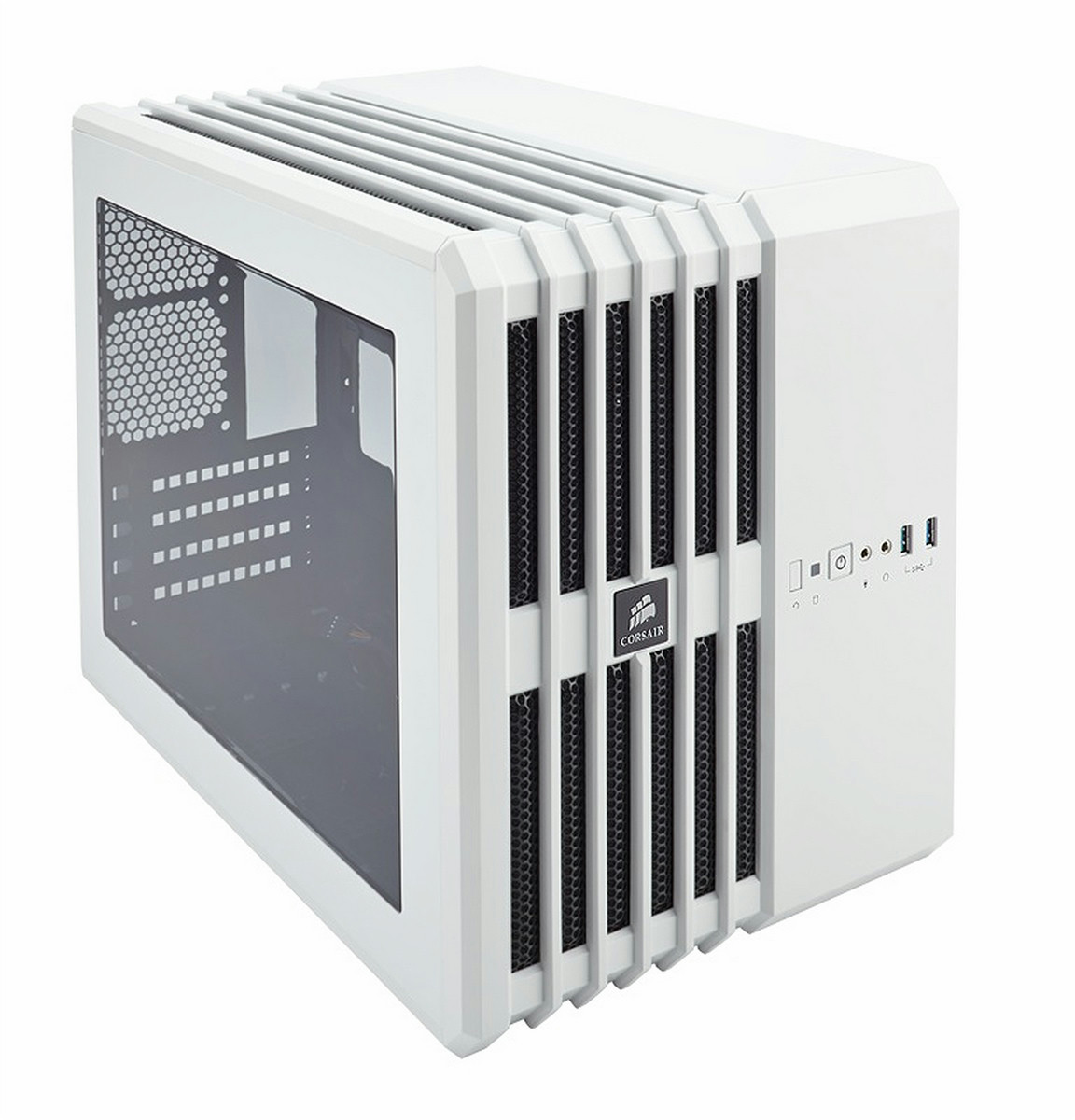

Meet the Carbide Series Air 240 – an extraordinary small form factor PC case for Mini-ITX and MicroATX computers.
The eye-catching cube design -- complete with a full side window -- hosts an internal layout optimized for maximum airflow or advanced water-cooling configurations (including a 240mm radiator or two).
Don’t let the compact size full you – this little one handles full size components while still offering roomy installation space.
Direct Airflow path cooling
The unusual interior design is optimized to allow the intake fans to deliver cool air directly to your components that generate the most heat.
Mini-ITX and MicroATX support in a compact size
Although it’s the same size as many Mini-ITX cases, the Air 240 supports MicroATX motherboards. This gives you the option of installing dual GPUs.
Easy installation and upgrades
Tool-free 3.5” drive, 2.5” drive, and side panel removal means that builds and upgrades can be performed without reaching for a screwdriver. The CPU backplate cutout allows you to upgrade your CPU cooler without taking out the motherboard.
Outstanding liquid cooling radiator support
The Air 240 has pre-spaced holes for 240mm radiators on the top, bottom, and front. If you’re using a Mini-ITX motherboard, you can add both front and bottom 240mm radiators. If you’re using a MicroATX motherboard with dual GPUs, you can install a front 240mm radiator.
Flexible installation
The flexibility goes beyond dual Mini-ITX and MicroATX compatibility. The included rubber feet can be placed on any of three surfaces, so you can customize the orientation of the chassis: as a standard tower, an inverted tower, or as a desktop.
Full side panel window
The panoramic window allows you to admire your work.
Build a clean, uncluttered system
The Air 240 has cable routing holes with grommets and tie-downs, with dedicated cable housing space behind the motherboard tray. It’s easy to move your cables out of the way and out of the airflow path.
Front panel USB 3.0 ports
Up-front connectors make it easy to attach USB flash drives, portable hard drives, and USB headsets.
