Design
| Supported motherboard form factors |
ATX, EATX, Micro-ATX, Mini-ITX |
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
2 |
| Side window |
Y |
| Number of 2.5" bays |
4 |
| Maximum graphics card length |
320 mm |
| Maximum CPU cooler height |
170 mm |
| Maximum PSU length |
200 mm |
| Number of expansion slots |
8 |
| Form factor |
Cube |
| Type |
PC |
Cooling
| Top fans diameters supported |
120, 140 mm |
| Maximum front fans |
3 |
| Rear fans diameters supported |
120, 140 mm |
| Maximum rear fans |
1 |
| Maximum top fans |
2 |
| Rear fans installed |
1x 140 mm |
| Front fans installed |
2x 140 mm |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
ATX / Micro ATX / E-ATX / Mini ITX, 2 x 3.5", 4 x 2.5", 8 Expansion Slots, 2 x USB 3.0, Audio In / Out, Black
Direct Airflow Path cooling for revolutionary performance.

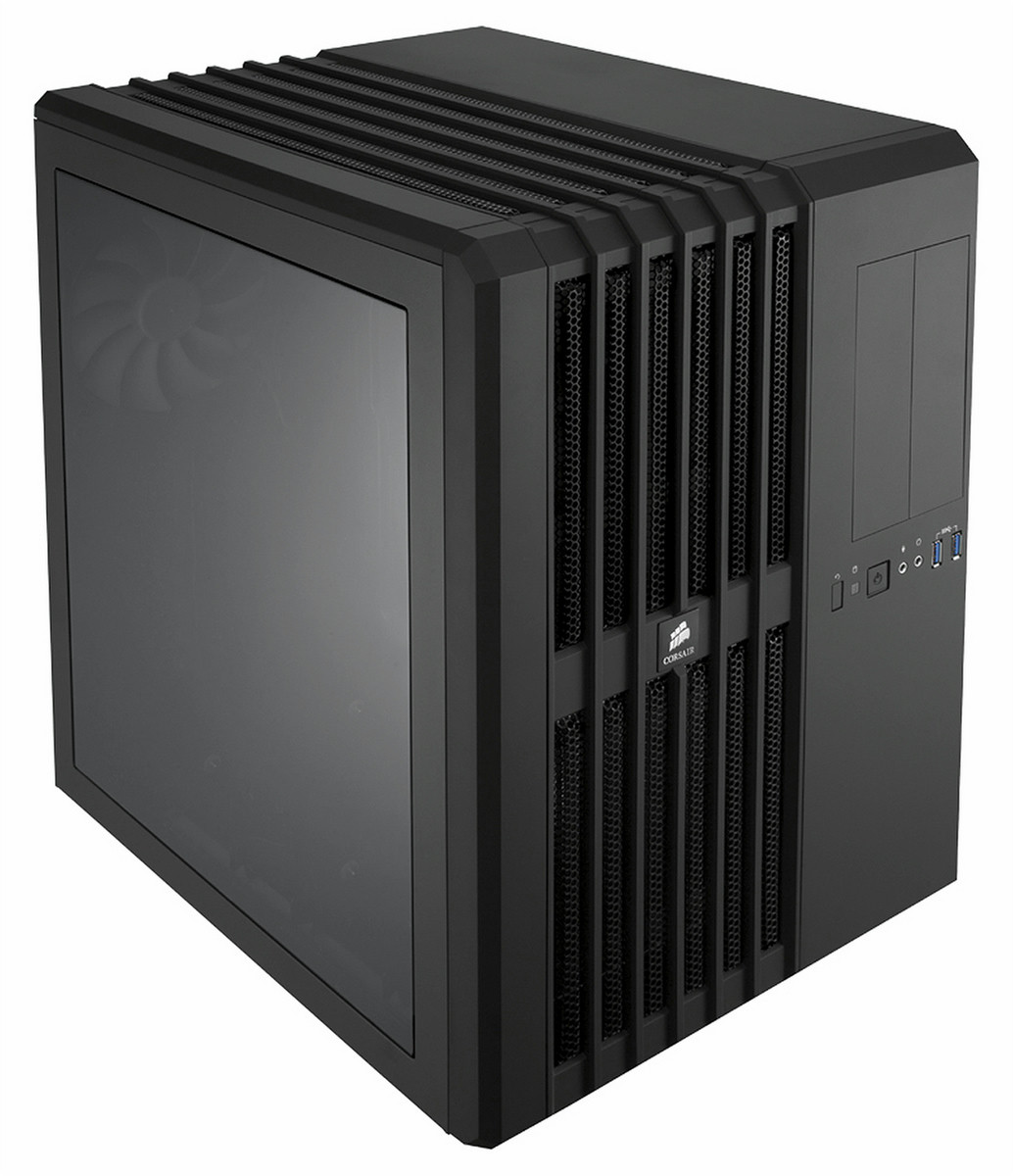

The unconventional design of Carbide Series Air 540 utilizes dual chambers to deliver cooler air to your CPU, graphics cards, motherboard, and memory without your drives or power supply getting in the way. The included custom Air Series AF140L intake and exhaust fans provide great airflow performance at lower noise levels than typical case fans. And, you can mount up to six 120mm or five 140mm fans, with 280mm top radiator support and room for a 360mm radiator on the front panel.
Like all Corsair cases, Carbide Series Air 540 is designed for fast, neat, and satisfying builds. The tinted, oversized flush-mount side window lets you show off your work.
