Design
| Side window |
Y |
| Maximum graphics card length |
426 mm |
| Type |
PC |
| Suitable for |
Gaming |
| Illumination |
Y |
| Maximum PSU length |
288 mm |
| Maximum CPU cooler height |
157 mm |
| Form factor |
Midi-Tower |
| Number of 3.5" bays |
3 |
| Number of 5.25" bays |
2 |
| Number of expansion slots |
7 |
| Number of internal 3.5" bays |
3 |
| Number of 2.5" bays |
2 |
Cooling
| Maximum rear fans |
1 |
| Maximum top fans |
2 |
| Front fans installed |
1x 120 mm |
| Bottom fans diameters supported |
120 mm |
| Maximum bottom fans |
1 |
| Maximum front fans |
2 |
| Rear fans diameters supported |
120 mm |
| Rear fans installed |
1x 120 mm |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Ergonomics
| Reset button |
Y |
| Cable management |
Y |
Storage
| Number of hard drives supported |
5 |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

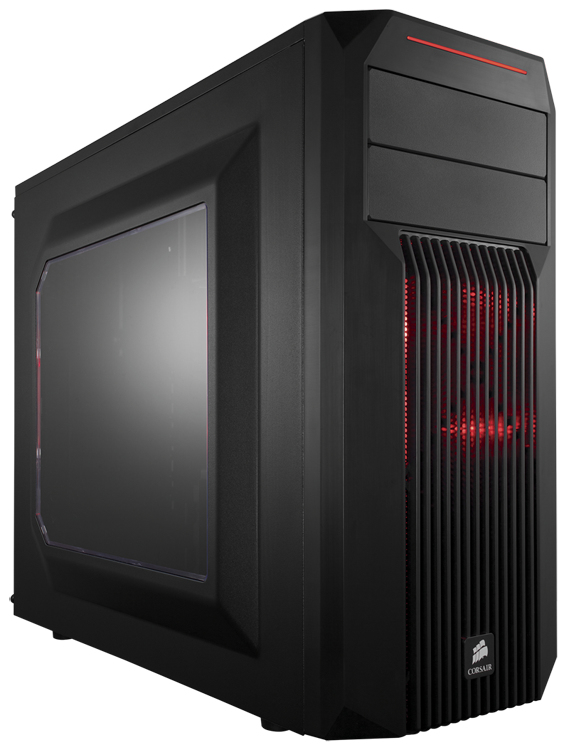

Carbide SPEC-02, Red LED, Mid-Tower, 2x 5.25", 3x 3.5", 2x 2.5", USB 3.0
<b>Rugged and flexible, with high airflow for high performance system builds.</b>
Carbide Series SPEC-02 is an aggressive gaming PC case with the superior air cooling you need if you’re running high-performance GPUs. The cleverly designed interior allows for the included LED-lit front intake fan to draw cold air directly to your graphics cards, and there’s room for up to six fans for massive cooling potential.
There’s a huge side panel window that lets you admire your components, and the cable routing system and dust filters help you build a clean system and keep it clean, too. Tool-free installation of up to three 3.5” hard drives and two solid-state drives make it easy to add and upgrade storage. And, it’s easy to live with, too… the dual front panel USB 3.0 connectors let you take advantage of the latest high-speed storage devices.
<b>Huge side panel window</b>
The aggressive look of the SPEC-02 makes it look great on the outside, but there’s beauty on the inside of a well-built system, too. The large side panel window lets you show it off.
<b>LED front intake fan, with room for more</b>
The 120mm front intake fan is bathed in soft LED lighting, and it’s oriented to draw cool air directly across your graphics cards. And if you want even more ventilation, you can add a second 120mm fan or even dual 140mm fans.
<b>Flexible cooling potential</b>
Like all Corsair cases, the SPEC-02 is designed for cooling, so you’re covered if you’re overclocking, running multiple GPUs, or if you just want more airflow. There are mounting points for up to six fans, including dual front 140mm or 120mm fans, dual 120mm fans on top, a bottom-mounted 120mm fan, and a rear 120mm fan.
<b>Multiple drive bays</b>
In addition to the two standard 5.25” optical drive bays, there are three 3.5” hard drive bays and two 2.5” solid-state drive bays.
<b>Easy system builds, maintenance and upgrades</b>
Builds should be easy, no matter what your budget. Drive installation is tool-free, and you get cable routing holes for neater-looking builds and better airflow. And, there’s a CPU cutout to allow for cooling upgrades without removing the motherboard. The front intake fan filters help keep dust out of the interior, and the front panel has dual USB 3.0 ports for fast performance from USB flash drives and portable hard drives.
