Design
| Side window |
Y |
| Number of 2.5" bays |
2 |
| Form factor |
Midi-Tower |
| Type |
PC |
| Number of 3.5" bays |
3 |
| Number of 5.25" bays |
2 |
| Number of expansion slots |
7 |
| Number of internal 3.5" bays |
3 |
| Suitable for |
Gaming |
| Maximum CPU cooler height |
165 mm |
| Maximum graphics card length |
430 mm |
Cooling
| Maximum front fans |
2 |
| Maximum rear fans |
1 |
| Maximum top fans |
3 |
| Rear fans diameters supported |
120 mm |
| Bottom fans diameters supported |
120 mm |
| Front fans installed |
2x 140 mm |
| Rear fans installed |
1x 120 mm |
| Maximum bottom fans |
2 |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Power supply
| Power supply included |
N |
| Power supply location |
Bottom |
Storage
| Number of hard drives supported |
5 |

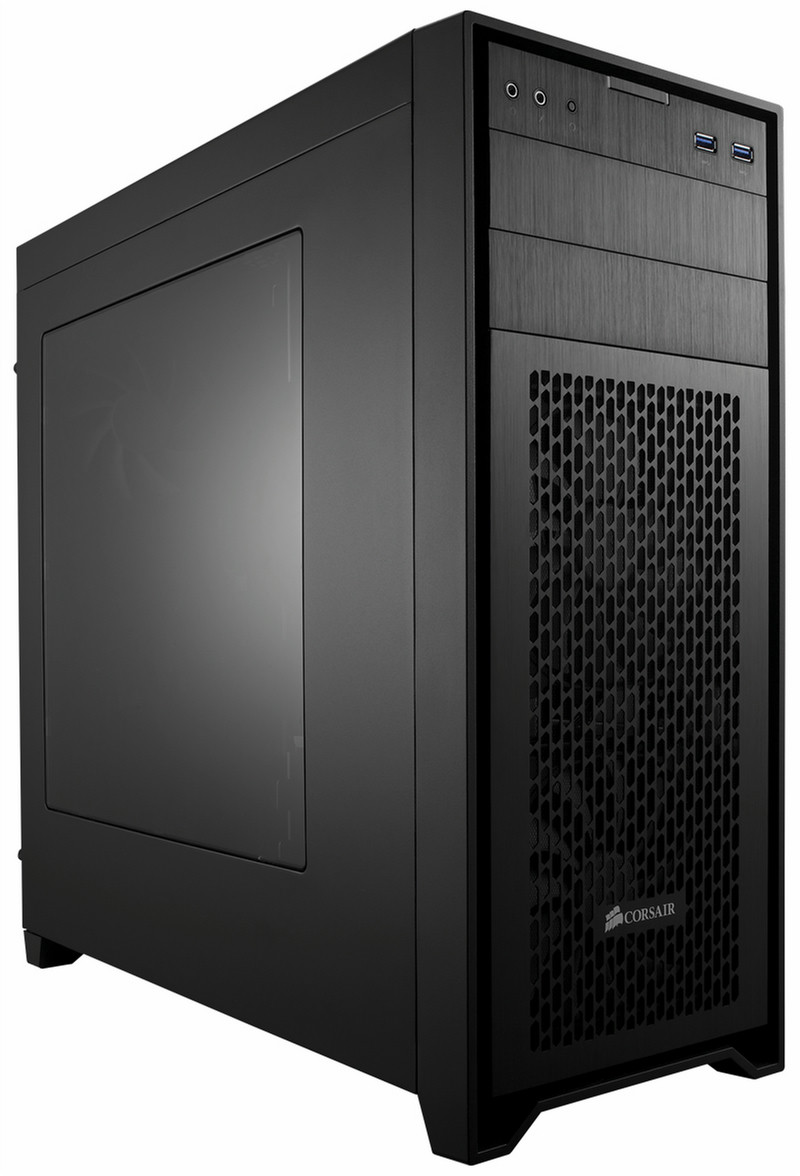

Obsidian 450D, 2x 5.25", 2x 2.5", 3x 2.5/3.5", USB 3.0, 7kg
<b>Mid-tower size, with a roomy interior that’s optimized for airflow.</b>
Obsidian Series 450D has an elegant brushed aluminum front panel and a solid steel body, with an interior that’s optimized for efficient, high-volume airflow. But don’t let its mid-tower size fool you – the 450D can also house some serious watercooling gear. The included dual front AF140L intake fans provide direct GPU cooling, and there’s a total of seven fan mounts for your extremely high volume airflow projects. All air intakes are protected with removable dust filters.
The interior is designed for superior cooling efficiency, with a modular removable drive cage system and dual SSD bays that mount behind the motherboard tray and out of the airflow path. The extra-large, flush mounted side window puts your system-building expertise on display while keeping with the sleek and refined Obsidian Series design.
<b>Dual AF140L intake fans with direct airflow path to GPUs</b>
The custom-designed, Corsair-exclusive AF140L 140mm intake fans deliver effective airflow with less noise and turbulence. Air intake passes directly across your GPUs for efficient heat dissipation.
<b>Seven fan mounting points for high-airflow and watercooling applications</b>
If your high-performance system build requires high-performance cooling, the 450D is an ideal platform. The mounts support front, bottom and rear radiators for flexible watercooling installation options, or fans for superior ventilation.
<b>Modular drive cage system with lateral SSD bays</b>
Mounting the SSDs under the motherboard uses interior space efficiently and gets your solid-state storage out of the airflow path. The removable drive cages allow you to use only the space you need for your storage requirements.
<b>Black anodized brushed aluminum fascia</b>
The elegant aluminum front fascia is an Obsidian Series hallmark. It’s durable and resistant to scratches and fingerprints.
<b>Extra-large, flush-mount side window</b>
The clear acrylic window lets you show off your work.
