Cooling
| Bottom fans diameters supported |
120 mm |
| Front fans installed |
2x 140 mm |
| Top radiator fan sizes supported |
360, 240 mm |
| Front radiator fan sizes supported |
280, 240 mm |
| Liquid cooling capability |
Y |
| Maximum bottom fans |
2 |
| Maximum top fans |
3 |
| Maximum front fans |
2 |
| Rear fans diameters supported |
120, 140 mm |
| Rear fans installed |
1x 140 mm |
| Maximum rear fans |
1 |
Design
| Maximum PSU length |
220 mm |
| Maximum CPU cooler height |
170 mm |
| Maximum graphics card length |
450 mm |
| Side window |
Y |
| Form factor |
Full-Tower |
| Type |
PC |
| Number of 3.5" bays |
3 |
| Number of 5.25" bays |
3 |
| Number of expansion slots |
9 |
| Number of 2.5" bays |
3 |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

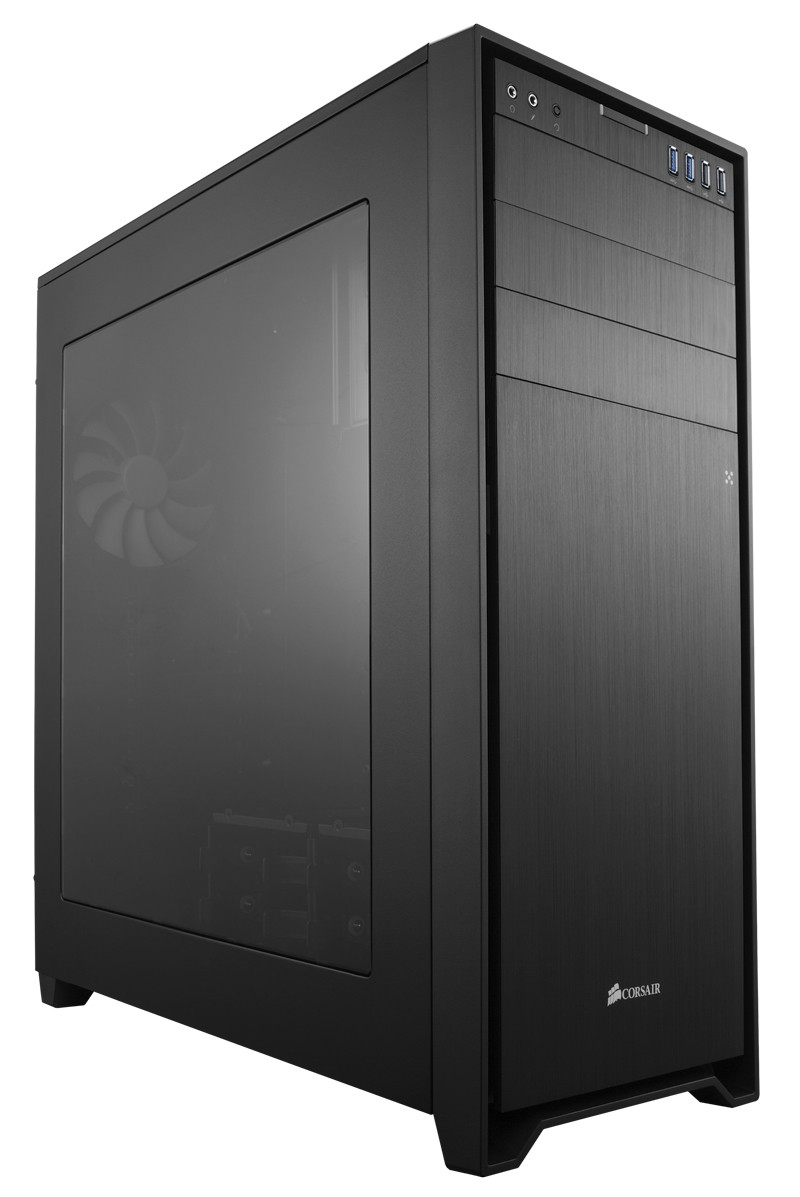

Obsidian 750D - Full-tower, ATX / E-ATX / mATX / Micro ATX / Mini ITX / XL-ATX, 2x USB 3.0, 1x USB 2.0, 1x Headphone, 1x Microphone
<b>The full tower Obsidian case for great-looking high performance PCs</b>
The Obsidian Series 750D full tower PC case combines generous expansion flexibility, room for advanced cooling options, and an interior that’s optimized for fast and easy builds and upgrades. It has a clean, elegant exterior that dispenses with arbitrary plastic add-ons in exchange for the beauty of brushed aluminum and solid steel. This rigid, rugged exterior surrounds a frame that has ample room for high-performance components and the sophisticated cooling you’ll need if you’re going to push those components to their limits. And, it incorporates a host of clever system builder-focused features, because building a system should be straightforward, trouble-free, and even fun.
<b>The room you need when you’re getting serious</b>
Nine PCI-E expansion slots support double and triple GPUs. There’s room for up to ten drives, and four USB ports on the brushed aluminum front panel.
<b>Your system. Your cooling.</b>
The three included Corsair AF140L high-airflow 140mm intake and exhaust fans are custom engineered to deliver excellent airflow with less unnecessary turbulence and noise. You can mount up to eight fans, with room for dual radiators on the bottom, front, and top.
<b>Take control of your storage</b>
There are four separate mounting locations for the drive cages, and if you’re moving to 100% solid-state, you can remove the 3.5” cages entirely and use the four side-mounted 2.5” cages.
<b>Designed for fast, straightforward builds</b>
The side panels and expansion slots use thumb screws, and storage installation is tool-free. A center-post standoff holds the motherboard in place while you secure it, and the dust filters are easily accessible and removable. Our innovative cable routing system has multiple cutouts with rubber grommets for superior airflow and a cleaner look, and the CPU backplate cutout lets you install or upgrade your CPU cooling without removing the motherboard.
