Cooling
| Maximum side fans |
1 |
| Maximum rear fans |
1 |
| Maximum bottom fans |
1 |
| Maximum top fans |
3 |
| Front fans installed |
1x 200 mm |
| Bottom fans diameters supported |
140, 120 mm |
| Maximum front fans |
2 |
| Rear fans diameters supported |
120 mm |
| Rear fans installed |
1x 120 mm |
Design
| Maximum graphics card length |
410 mm |
| Material thickness |
0.7 mm |
| Illumination |
Y |
| Form factor |
Midi-Tower |
| Suitable for |
Gaming |
| Type |
PC |
| Maximum CPU cooler height |
170 mm |
| Side window |
Y |
| Number of 3.5" bays |
8 |
| Number of 5.25" bays |
3 |
| Number of internal 3.5" bays |
7 |
| Number of 2.5" bays |
3 |
Power supply
| Power supply included |
N |
| Power supply location |
Bottom |
Ergonomics
| Transport wheels |
N |
| Cable management |
Y |
Storage
| Number of hard drives supported |
9 |
| Built-in HDD dock station |
Y |
| Hot-swap |
Y |
Packaging data
| Handheld remote control |
N |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

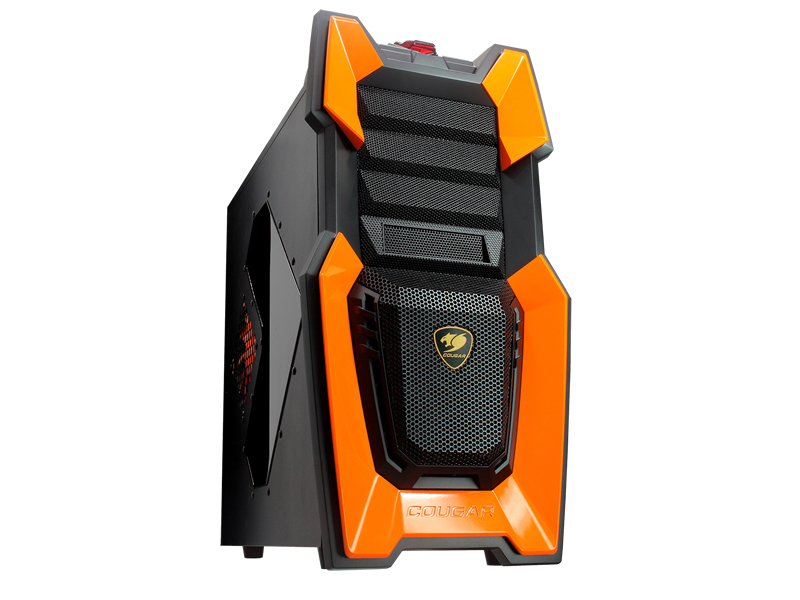

Middle Tower, Micro ATX / ATX, 268x514x523mm
- Innovative & revolutionary UI design takes inspiration from the pilot unlock missile cover then fire!
- Interior black painting
- Advanced two USB3.0 ports for maximum data transfer speed and compatible for non-USB3.0 function's motherboard
- Top access external 3.5" & 2.5" HDD/SSD hot-swap for easy mobile data transfer
- Support for 7 fans:
front 120mm fans x 2 / 140mm fans x 2 / 200mm fan x 1;
top 120mm fans x 2 / 140mm fans x 2 / 180mm fan x 1 / 200mm fan x 1;
bottom 120mm fan x 1 / 140mm fan x 1;
rear 120mm fan x 1;
side 120mm fan x 1 / 140mm fan x 1
Front COUGAR 200mm red LED fan x 1 and rear COUGAR Turbine 120mm fan x 1 are pre-installed
Acrylic side panel
Support for longer high-end graphics cards up to 300mm, 330mm & 410mm. (depending on varies graphics cards requirement to change position with HDD bracket)
7 PCI slots provides flexibility for multiple graphics cards solutions.
Screw-less mechanisms on 5.25" devices
3.5" HDD trays x 7 compatible for installing 2.5" HDDs/SSDs x 7
Provide 2.5" HDD trays x 3 to install depending on the graphics cards length
Holes x 3 on the rear panel for water cooling solutions. (with rubber protection)
Installation opening in the MB tray for easy upgrade CPU cooler
Cable feedthrough on the MB tray for easy routing and hiding cables
Vented slot bezels for better cooling performance
Air filter on the bottom cover & side cover to prevent dust from entering the enclosure (magnet filters are easy to uninstall and clean)
