Design
| Number of 3.5" bays |
8 |
| Number of 5.25" bays |
3 |
| Suitable for |
Gaming |
| Illumination |
Y |
| Maximum graphics card length |
410 mm |
| Form factor |
Midi-Tower |
| Type |
PC |
| Number of expansion slots |
7 |
| Side window |
Y |
| Number of 2.5" bays |
3 |
Cooling
| Maximum top fans |
6 |
| Maximum rear fans |
1 |
| Bottom fans diameters supported |
140, 120 mm |
| Front fans installed |
1x 200 mm |
| Maximum bottom fans |
2 |
| Maximum side fans |
2 |
| Rear fans diameters supported |
120 mm |
| Side fans diameters supported |
140, 120 mm |
| Maximum front fans |
5 |
| Rear fans installed |
1x 120 mm |
Storage
| Number of hard drives supported |
9 |
| Hot-swap |
Y |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

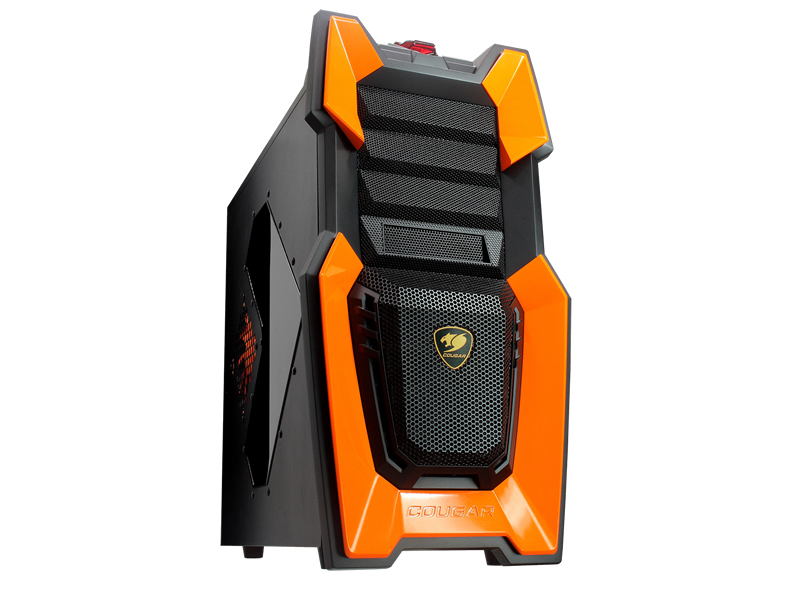

Middle Tower, Micro ATX/ATX, USB 3.0 x 2, Black/Orange
- Innovative & revolutionary UI design takes inspiration from the pilot unlock missile cover then fire!
- Interior black painting
- Advanced two USB3.0 ports for maximum data transfer speed and compatible for non-USB3.0 function's motherboard
- Top access external 3.5" & 2.5" HDD/SSD hot-swap for easy mobile data transfer
- Support for 7 fans:
front 120mm fans x 2 / 140mm fans x 2 / 200mm fan x 1;
top 120mm fans x 2 / 140mm fans x 2 / 180mm fan x 1 / 200mm fan x 1;
bottom 120mm fan x 1 / 140mm fan x 1;
rear 120mm fan x 1;
side 120mm fan x 1 / 140mm fan x 1
- Front COUGAR 200mm red LED fan x 1 and rear COUGAR Turbine 120mm fan x 1 are pre-installed
- Acrylic side panel
- Support for longer high-end graphics cards up to 300mm, 330mm & 410mm. (depending on varies graphics cards requirement to change position with HDD bracket)
- 7 PCI slots provides flexibility for multiple graphics cards solutions.
- Screw-less mechanisms on 5.25" devices
- 3.5" HDD trays x 7 compatible for installing 2.5" HDDs/SSDs x 7
- Provide 2.5" HDD trays x 3 to install depending on the graphics cards length
- Holes x 3 on the rear panel for water cooling solutions. (with rubber protection)
- Installation opening in the MB tray for easy upgrade CPU cooler
- Cable feedthrough on the MB tray for easy routing and hiding cables
- Vented slot bezels for better cooling performance
- Air filter on the bottom cover & side cover to prevent dust from entering the enclosure (magnet filters are easy to uninstall and clean)
