Packaging content
| Carrying case |
Y |
| Batteries included |
Y |
| Test leads |
Y |
Technical details
| Frequency range |
0.005 - 0.5 kHz |
| AC voltage range |
0 - 1000 V |
| Backlight |
Y |
| Resistance range |
1 - 60000 Ω |
| Resolution (frequency) |
0.1 Hz |
| Basic accuracy (DC voltage) |
1% |
| Basic accuracy (AC voltage) |
1.5% |
| Basic accuracy (AC current) |
2.5% |
| Basic accuracy (DC current) |
2% |
| Basic accuracy (resistance) |
1% |
| AC current range |
0 - 600 A |
| Basic accuracy (frequency) |
0.5% |
| DC current range |
0 - 600 A |
| Basic accuracy (capacitance) |
1% |
| Resolution (DC voltage) |
500 mV |
| Capacitance range |
1 - 1000 nF |
| Resistance resolution |
1 Ω |
| Resolution (AC current) |
1 µA |
| DC voltage range |
0 - 600 V |
| Resolution (DC current) |
1 µA |
Power
| Battery type |
AA |
| Number of batteries supported |
2 |

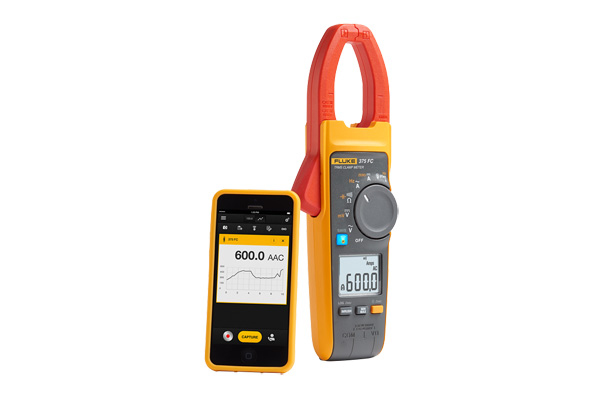

Fluke 375 FC True-rms AC/DC Clamp Meter
- Connect your meter to your smartphone with Fluke Connect Measurements
- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the Cloud
- Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 375 FC
- Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
- Compatible with iFlex flexible current probe; use to expand the measurement range to 2500 A ac; provides access to large conductors in tight spaces
- Compatible with TPAK magnetic hanging strap
- Integrated VFD low pass filter for accurate motor drive measurements
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V safety rating
- Three-year warranty
Soft carrying case
Measurement Capability
- 600 A ac and dc current measurement
- 2500 A ac current measurement with (optional) iFlex flexible current probe
- 1000 V ac and dc voltage measurement
- True-rms voltage and current for accurate measurements on non-linear signals
- Frequency measurement to 500 Hz with body jaw and iFlex
- Resistance measurement to 60 kΩ with continuity detection
- Min, max, average, and inrush recording to capture variations automatically
- 500 mV dc measurement range to interface with other accessories
- 1000 μF capacitance measurement
