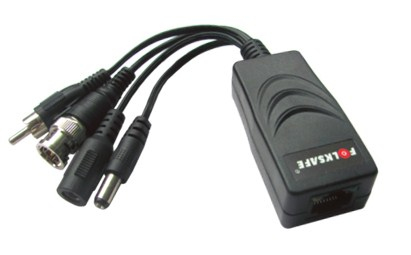

FS-4301VPA - 1-CH Passive Video,Power & Audio Balun ( transmitter+receiver ), RJ45 UTP cat5e/6 cable, BNC, 12V/24V DC/AC, PAL/NTSC/SECAM, 400m, 65g, Black
<b>1-CH Passive Video ,Power & Audio Transceiver (12V/24V DC/AC)</b>
- Transmit power signal up to 656ft(200m) in pairs
- Color video up to 1312ft(400m) via UTP cat5e/6 cable
- Audio signal up to 1968ft(600m) in pairs
- NTSC, PAL & SECAM video format compatible
- Real-time transmission
- RJ45 Jack for UTP cat5e/6 cable
- Male BNC with extended mini-coax pigtail
- No power required
- Exceptional interference rejection
- Built-in TVS(Transient Voltage Suppressors) for surge protection
- Lightning protection design Grade: III
- 50 dB crosstalk and noise immunity
- Wave Filter Design, Anti-Static Design
- Compact size and easy installation
- ABS engineering plastic housing
The FS-4301VPA is a passive (non-amplified) device that allows the transmission of real-time CCTV video , power and audio signal via one cost-effective Unshielded Twisted Paired(UTP) cable. Baseband (composite) signals of any type are supported.
Used in pairs, FS-4301VPA eliminates costly and bulky coaxial cable, allowing live CCTV color video, power and audio signal up to 656ft(200m).
The superior interference rejection and low emissions of the FS-4301VPA allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. FS-4301VPA has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
