Design
| Supported motherboard form factors |
ATX, EATX, Micro-ATX, Mini-ITX |
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
4 |
| Side window |
N |
| Number of 2.5" bays |
2 |
| Maximum CPU cooler height |
185 mm |
| Number of expansion slots |
7 |
| Form factor |
Midi-Tower |
| Type |
PC |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Cooling
| Front fans installed |
2x 120 mm |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
ATX, E-ATX, Micro ATX, Mini ATX, 2 x 5.25", 4 x 3.5", 2 x 2.5", ATX PSUs, 233 x 465 x 517 mm, 8.6 kg

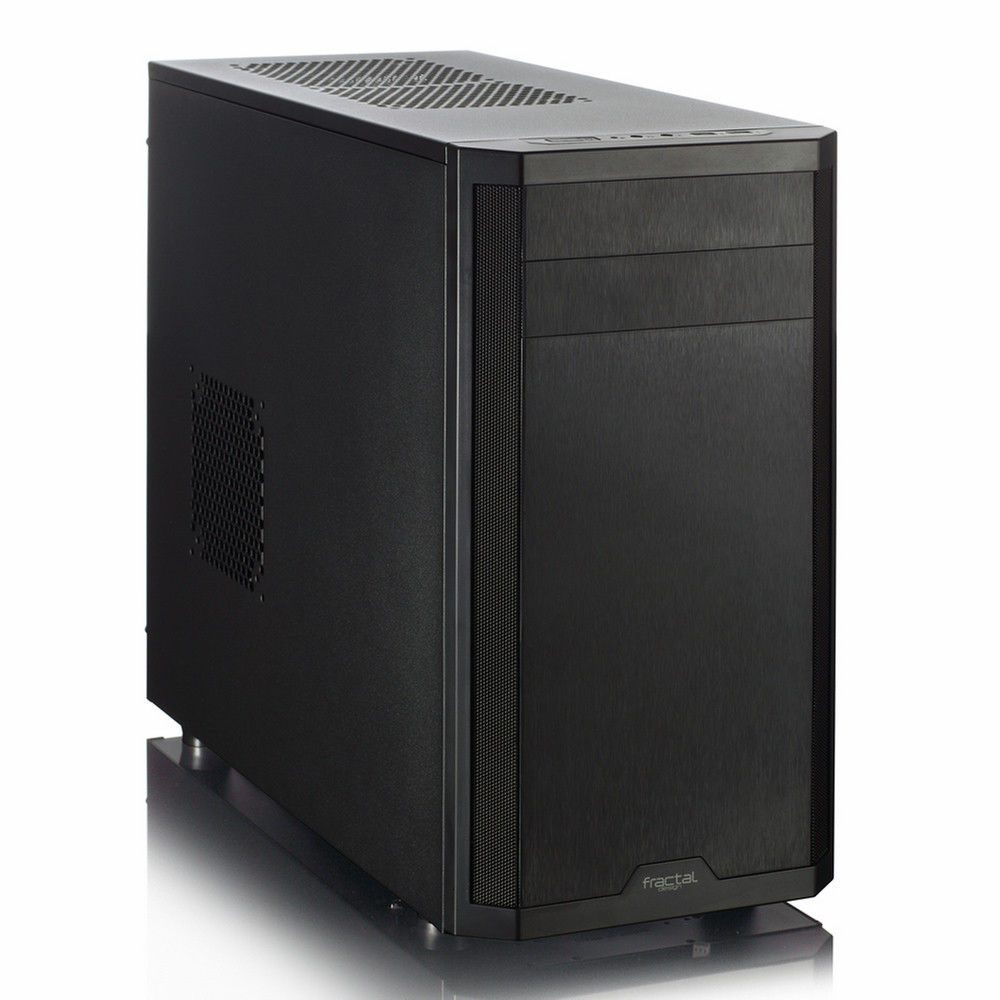

Fractal Design Core 3500 is a wide body mid tower ATX case, also available in a Windowed side panel version, allowing users to show off their build. High-performance features include superior liquid cooling potential with support for up to two 240mm radiators or a 280mm radiator
- A wide body mid tower case with bottom-mounted PSU, designed for exceptional airflow and cooling.
- Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
- Superior water cooling support, supporting one 240/280mm radiator in the front and a 240mm radiator in the top
- Featuring a 140mm rear exhaust fan for optimal cooling
- Total 7 fan slots with two Silent Series R2 140mm fans included
- Smart cable management with 22mm of space behind the motherboard plate and thick rubber grommets for clean installations
- Supports extremely tall tower CPU coolers, up to 185mm in height
- Featuring an integrated three-speed fan controller
- Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
- Four vibration dampening hard drive trays for up to four 3.5" HDDs, all compatible with 2.5" drives
- HDD trays split into two cages and strategically positioned with a large space in between to support all long graphics cards up to a maximum length of 430mm in the top four slots, and cards up to 295mm in length in the bottom three slots
- Two additional SSD positions behind the motherboard plate
