Design
| Supported motherboard form factors |
ATX, Micro-ATX, Mini-ATX |
| Number of 3.5" bays |
3 |
| Side window |
N |
| Number of 2.5" bays |
2 |
| Maximum graphics card length |
450 mm |
| Maximum CPU cooler height |
180 mm |
| Maximum PSU length |
300 mm |
| Type |
PC |
| Anti-dust filter |
Y |
| Number of expansion slots |
7 |
Cooling
| Top fans diameters supported |
120, 140 mm |
| Maximum front fans |
3 |
| Rear fans diameters supported |
120, 140 mm |
| Maximum rear fans |
1 |
| Maximum top fans |
3 |
| Maximum bottom fans |
1 |
| Rear fans installed |
1x 140 mm |
| Liquid cooling capability |
Y |
| Front radiator fan sizes supported |
120, 140, 240, 280, 360 mm |
| Top radiator fan sizes supported |
120, 140, 240, 280, 360, 420 mm |
| Front fans installed |
1x 140 mm |
| Bottom fans diameters supported |
120, 140 mm |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Ergonomics
| Reset button |
Y |
| Cable management |
Y |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
ATX, Micro ATX, Mini ITX, 3.5" x 3, 6.35 cm (2.5 ") x 2, 2 x USB 3.0

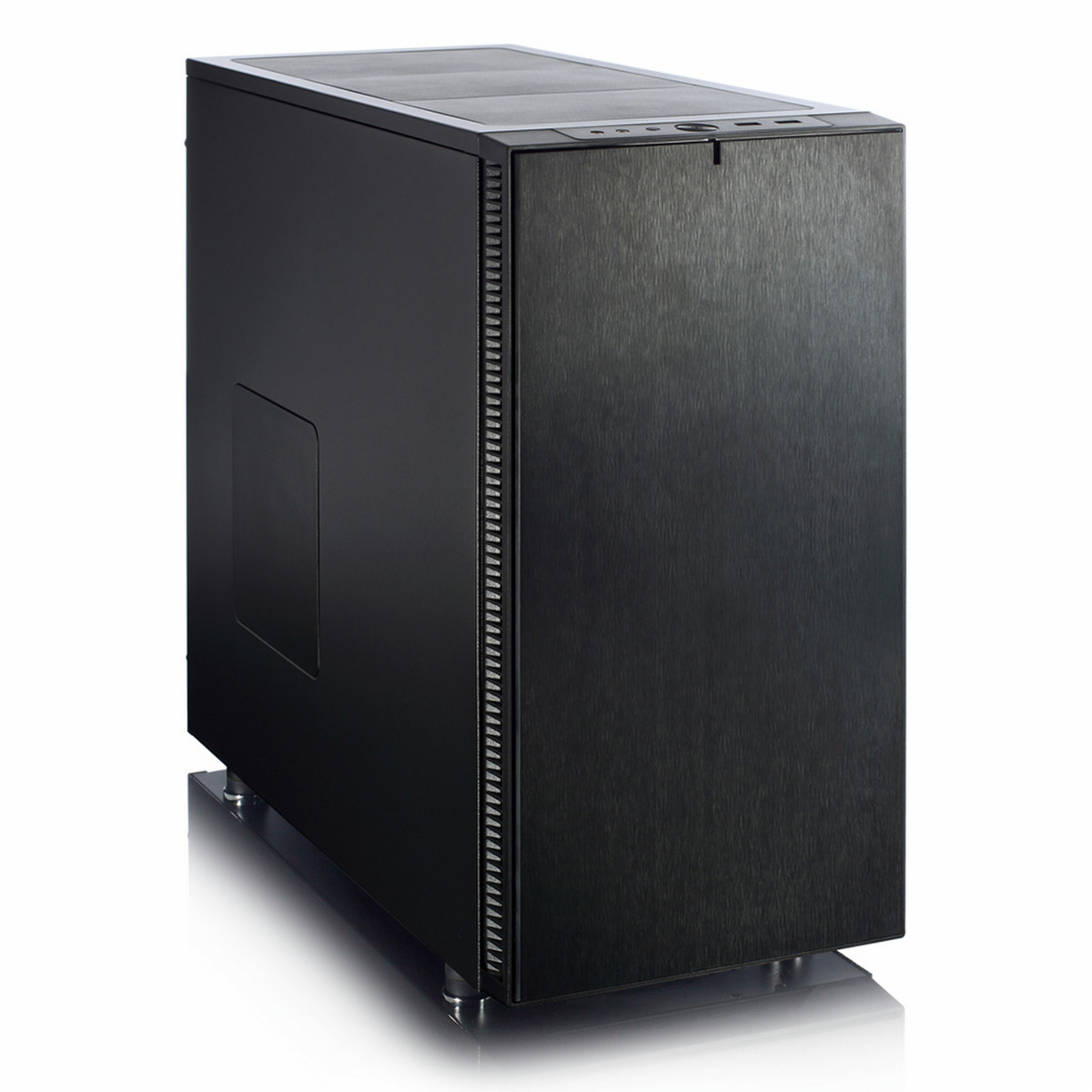

The Fractal Design Define S lends the appearance, sound dampening technology, and support for a wide variety of components from the widely popular Define Series, while introducing a new, innovative internal layout. The Define S case is packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.
The modernized internal layout of the Define S omits the optical drive bays, instead focusing on a clear straight airflow path and uncompromising water cooling support.
The Define S case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, multiple ModuVent™ fan vent covers and finely tuned Dynamic Series fans.
- Optimally designed for silent computing, while not compromising on airflow and cooling capabilities
- Innovative internal layout, providing a perfectly straight airflow path to the CPU heatsink for air cooling set ups or extensive radiator mounting possibilities for water cooling set ups
- Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front
- Including smart reservoir brackets; featuring drill-free reservoir mounting on the front of the motherboard tray and pre-drilled pump mounting holes on the bottom panel
- Equipped with ModuVent™ fan slot covers providing the option of additional cooling or maximum sound absorption
- Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels
- Maintaining a dust-free interior with dust filters that cover the front and bottom air intakes
- Introducing newly designed hard drive trays placed vertically behind the front partition of the motherboard tray; Three sturdy steel trays with vibration-dampening grommets allowing for installation of one 3.5" or 2.5" drive on each tray, without disrupting the airflow or interfering with the radiator mounting possibilities
- An additional 2 dedicated steel SSD trays cleanly placed behind the motherboard tray
- Long motherboard tray extending to the front panel contributing to an extremely clean build, hiding both hard drives and cables
- Define S model is also available with a large window on the side panel
