Design
| Supported motherboard form factors |
DTX |
| Number of 3.5" bays |
6 |
| Side window |
N |
| Maximum graphics card length |
310 mm |
| Maximum CPU cooler height |
165 mm |
| Maximum PSU length |
160 mm |
| Anti-dust filter |
Y |
| Number of expansion slots |
2 |
| Volume |
19.5 L |
| Type |
PC |
| Suitable for |
Home/Office |
Power supply
| Power supply location |
Bottom |
| Power supply included |
N |
Cooling
| Maximum front fans |
2 |
| Rear fans diameters supported |
120 mm |
| Maximum rear fans |
1 |
| Rear fans installed |
1x 140 mm |
| Front fans installed |
2x 92 mm |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

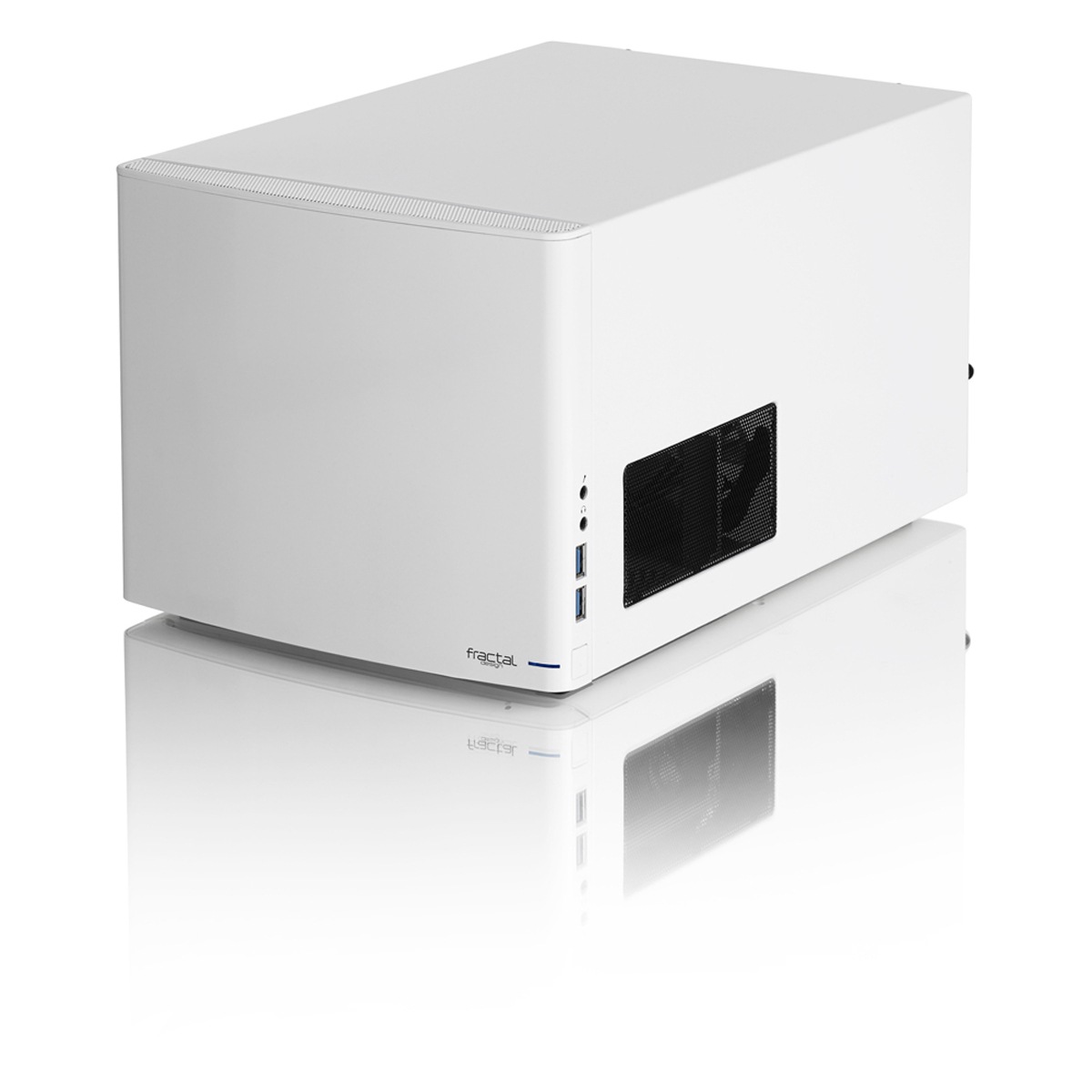

Node 304 - Mini ITX, DTX, 160mm PSU, 310mm VGA, 165 mm CPU, 2 x USB 3.0
The Node 304 features a unique modular interior for outstanding configurability.
The Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed to allow for long graphic cards, additional airflow or more space for organizing cables. Additionally, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes and two front USB 3.0 ports.
Featuring hybrid functionality, the Node 304 case is ideally used as a cool-running file server, a stylish and quiet home theatre PC or a powerful gaming system highlighting minimalistic and stunning Scandinavian design and maximum functionality.
- Compact, modular interior
- Minimalistic design with an elegant aluminum front panel
- Unique new modular mounting system that accommodates up to 6 hard drives
- Accommodates tower CPU coolers and single-fan water cooling systems
- Filtered air intakes ensure a dust-free environment for internal components
- Three Silent Series R2 hydraulic bearing fans included
- Excellent cooling for all components
- Accommodates ATX power supplies
- Fan controller for all fans included
- USB 3.0 for fast file transfers
Technical specifications
- Mini ITX, DTX motherboard compatibility
- 2 expansion slots
- 6 – supports either 3.5" or 2.5" HDD / SSD
- ATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm)
- Graphics cards, up to 310mm in length, when 2 HDD brackets (1 HDD hanging bracket total) are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm)
- Tower CPU coolers, up to 165 mm tall
- Case dimensions (W x H x D): 250 x 210 x 374 mm
- Case volume: 19,5 Liters
- Net weight: 4,9 kg
- Colors available: Black and White
