Packaging content
| Quick installation guide |
Y |
Performance
| Input impedance |
75 Ω |
| Spurious level |
-60 dBc |
| Input power (max) |
88 dBmW |
| Input power (min) |
43 dBmW |
| Input frequency range |
170-230, 470-862 MHz |
| Output voltage |
82 dBμV |
Ports & interfaces
| DC-in jack |
Y |
| DC-out jack |
Y |
| RJ-45 input ports |
2 |
| RF connector type |
F |
| Common interface (CI) |
Y |
| RF input |
2 |
| RF output |
2 |
Power
| Low-Noise Block (LNB) power supply |
18V + 22kHz, 18V, 13V + 22kHz, 13V |
| Power consumption (30V) |
3 mA |
| Power consumption (12V) |
400 mA |
| Power consumption (5V) |
850 mA |

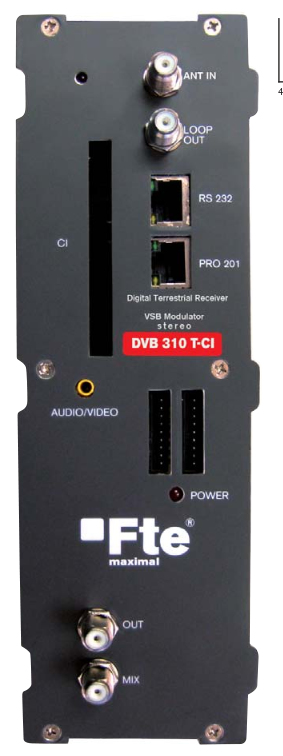

DVB 310 T CI, Digital Terrestrial Receiver with Common Interface for Headends, DVB-T input, PAL output, 1x AUX
- Description DVB-T (CI) --> PAL/SECAM (multistandard)
- Connectors Female F connector
- Input frequencies (MHz) 170 - 230 MHz/470 - 862 MHz
- Input level (dBuV) 43-88
- Band width (MHz) DVB-T (7-8)
- Impedance (Ω) 75
- LOOP loss (dB) <1
- Programming Display/OSD
- Output Level (dBuV) 82 + 1 / - 3
- Regulation (dB) 15
- Output channels band C2-C69
- Modulation type VSB / STEREO
- Common Interface, 1 slot
- Consumption 5 V (mA) <850 + PCMCIA
- Consumption 12 V (mA) <400
- Consumption 30 V (mA) <3
