Performance
| Auto channel search |
Y |
| Analog signal format system |
PAL, PAL D, PAL DK, PAL I, PAL L, PAL M, SECAM |
| Attenuator setting range |
0 - 60 dB |
| Frequency range |
5 - 2150 MHz |
| Satellite Channel Router (SatCR) compatible |
Y |
| Digital Satellite Equipment Control (DiSEqC) |
1.2 |
| Input symbol rate |
45 Ms/s |
| Modulation |
COFDM, 128-QAM, 16-QAM, 256-QAM, 32-QAM, 64-QAM, 8PSK, QPSK |
| FM band range |
88 - 108 MHz |
| Input impedance |
75 Ω |
| Memory capacity (programs) |
1000 |
| Resolution filter |
300 kHz |
| Span |
Full, 10, 20, 50, 100, 200, 500 MHz |
| Input voltage range (TV) |
20 - 130 dBμV |
| Input voltage range (SAT) |
30 - 125 dBμV |
| Digital signal measurements |
Bit Error Rate (BER), Carrier-to-Noise Ratio (CNR), Channel power, Modulation Error Ratio (MER), Noise margin, Wrong packets |
| Analog signal measurements |
Audio/Video level, Carrier-to-Noise Ratio (CNR), Level, Sync pulse, Video line |
| Meter Aided Programming (MAP) function |
Y |
| Data logger |
Y |
Ports & interfaces
| RF connector type |
F |
| RF ports quantity |
1 |
Design
| Short circuit protection |
Y |
| Reset button |
Y |
| Control type |
Buttons, Rotary |
| On Screen Display (OSD) |
Y |
| Buzzer |
Y |
| Built-in display |
Y |
| Display type |
TFT |
Packaging content
| Carrying case |
Y |
| Power cord included |
Y |
| User guide |
Y |
Power
| Power source type |
Battery, DC |
| Low-Noise Block (LNB) power supply |
24V, 13V, 13V + 22kHz, 18V, 18V + 22kHz, 5V |
| Input voltage |
20 V |
| Charging time |
3 h |
| Battery life |
2.5 h |
Additionally
| Unit of measure |
dBm, dBmV, dBμV |
| RS-232 port |
1 |
| Battery capacity |
30 Wh |
| AC adapter bundled |
Y |

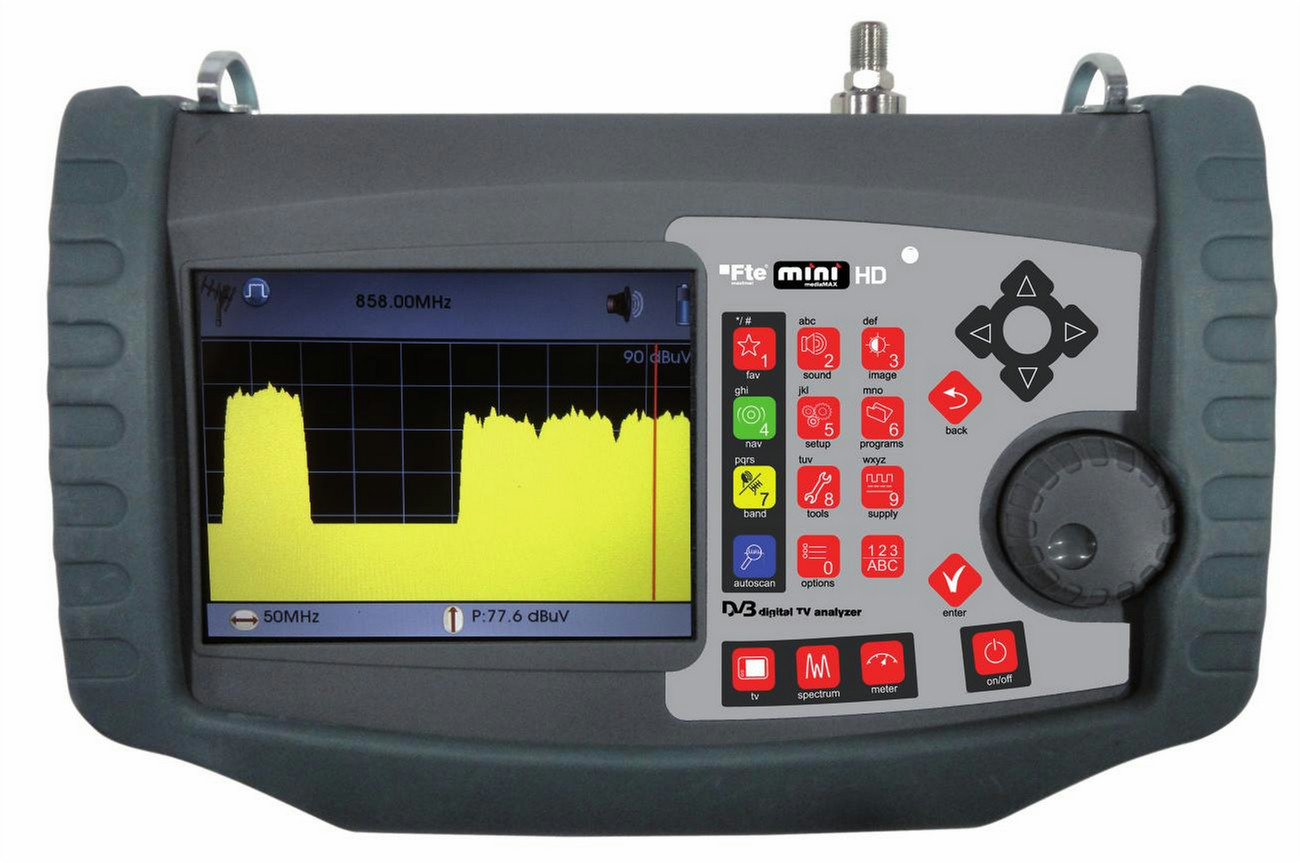

MEDIAMAX MINI S2 CT HD, Professional field meter TERR/SAT, 5 - 2150MHz, 1000 programs, 15.24 cm (6 ") , TFT, Li-Ion
The mediaMAX MINI HD
is the third generation of Fte Maximal fi eld strengh meters based on the proven concept of the mediaMAX EVO. The new mediaMAX MINI HD has been designed in order to supply all the features of mediaMAX MINI, but adding a big number of improvements that turn it into an essential device for installers and telecommunications professionals.
The most notable improvement of the new device regarding mediaMAX MINI are:
- MPEG-4 video decoding
- Dolby Digital Plus audio and AAC decoding
- 6” TFT HD Screen
- Automatic adjustment of the screen brightness.
The new mediaMAX MINI HD has been designed in order to provide most of the functionallity of the
mediaMAX EVO family, in a more compact package.
The mediaMAX MINI HD and the mediaMAX EVO share the same user interface, and all the generated files are compatible between both families.All these features render the mediaMAX MINI HD a perfect complement to the mediaMAX EVO being an essential device for telecomunications installers and professional.
Some of the main features are hereafter explained:
- Measure of analog multistandard terrestrial (AMTV) and satellite signals (FMTV)
- Video line displaying for terrestrial analog signals
- Measure of digital terrestrial (DVB-T), satellite (DVB-S/S2) and cable (DVB-C) signals
- Analog (terrestrial) and digital image representation on colour 6” TFT screen
- Same user interface as mediaMAX EVO and mediaMAX MINI.
- Datalogger
- Extremely Compact and light design (under 2 Kg)
- Wide connectivity (HDMI, USB, input Audio/Video minijack, RJ-45)
- High battery life (2 hours without LNB)
PACKAGE CONTENTS
- Field Strength Meter
- Bag
- Belt and support for the belt
- Mains power supply 20V 2,5Amp.
- Mains power cable for the power supply
- Adapter F-F female
- User’s quick reference guide
- Document providing a list of the meter’s components, as well as the information concerning
- the meter’s calibration.
- RCA-JACK
- PC-5e-U-MT-1.5GY cable(RJ 45 - RJ 45)
- Frequency plan guide
