Performance
| Auto channel search |
Y |
| Analog signal format system |
PAL, PAL D, PAL DK, PAL I, PAL L, PAL M, SECAM |
| Attenuator setting range |
0 - 60 dB |
| Frequency range |
47 - 2150 MHz |
| Accuracy |
1.5 dB |
| Satellite Channel Router (SatCR) compatible |
Y |
| Digital Satellite Equipment Control (DiSEqC) |
1.2 |
| Input symbol rate |
45 Ms/s |
| Modulation |
COFDM, 16-QAM, 64-QAM, 8PSK, QPSK |
| FM band range |
88 - 108 MHz |
| Input impedance |
75 Ω |
| Memory capacity (programs) |
1000 |
| Resolution filter |
1000 kHz |
| Span |
Full, 10, 20, 50, 100, 200, 500 MHz |
| Input voltage range (TV) |
20 - 125 dBμV |
| Input voltage range (SAT) |
30 - 125 dBμV |
| Digital signal measurements |
Bit Error Rate (BER), Carrier-to-Noise Ratio (CNR), Channel power, Modulation Error Ratio (MER), Noise margin, Wrong packets |
| Analog signal measurements |
Audio/Video level, Carrier-to-Noise Ratio (CNR), Level, Sync pulse, Video line |
| Data logger |
Y |
Ports & interfaces
| RF connector type |
F |
| RF ports quantity |
1 |
Design
| Short circuit protection |
Y |
| Reset button |
Y |
| Control type |
Buttons, Rotary |
| On Screen Display (OSD) |
Y |
| Built-in display |
Y |
| Display type |
TFT |
Packaging content
| Carrying case |
Y |
| Power cord included |
Y |
| User guide |
Y |
Power
| Power source type |
Battery, DC |
| Low-Noise Block (LNB) power supply |
13V, 13V + 22kHz, 18V, 18V + 22kHz, 5V |
| Input voltage |
20 V |
| Charging time |
3 h |
| Battery life |
2 h |
Additionally
| Unit of measure |
dBm, dBmV, dBμV |
| RS-232 port |
1 |
| Battery capacity |
30 Wh |
| AC adapter bundled |
Y |

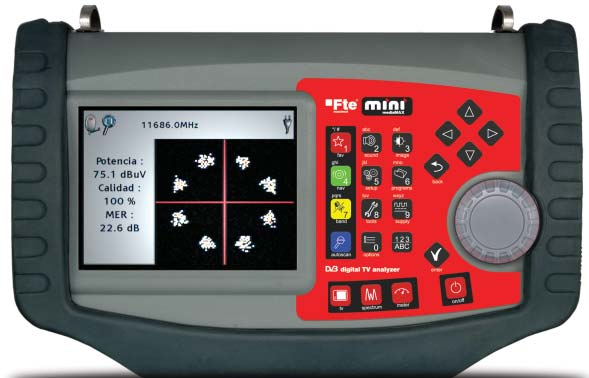

mediaMAX MINI S2T, Professional field meter TERR/SAT, 47 - 862MHz, 863 - 2150MHz, 1000 programs, 12.7 cm (5 ") , TFT, Li-Ion
The mediaMAX MINI is the second generation of Fte Maximal fi eld strengh meters based on the proven concept of the mediaMAX EVO.
The new mediaMAX MINI has been designed in order to provide most of the functionallity of the mediaMAX EVO family, in a more compact package. The mediaMAX MINI and the mediaMAX EVO share the same user interface, and all the generated fi les are compatible between both families. All these features render the mediaMAX MINI a perfect complement to the mediaMAX EVO being an essential device for telecomunications installers and professional.
PACKAGE CONTENTS
- Field Strength Meter
- Bag
- Belt and support for the belt
- Mains power supply 20V 2,5Amp.
- Mains power cable for the power supply
- Adapter F-F female
- User’s quick reference guide
- Document providing a list of the meter’s components, as well as the information concerning the
- meter’s calibration.
- RCA-JACK
- CPR-1 cable (DB9 male / RJ 45 male)
- CPR-2 cable (DB9 male / DB9 male)
- Frequency plan guide
