Processor special features
Thermal Monitoring Technologies |
N |
Intel Trusted Execution Technology |
N |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Clear Video Technology for MID |
N |
Intel FDI Technology |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Intel Rapid Storage Technology |
N |
Graphics & IMC lithography |
45 nm |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Execute Disable Bit |
Y |
Idle States |
Y |
Physical Address Extension (PAE) |
36 bit |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
37.5 mm |
Processor ARK ID |
48505 |
Processor code |
SLBUD |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Physical Address Extension (PAE) |
Y |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
Y |
CPU configuration (max) |
1 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Supported instruction sets |
SSE4.2 |
Processor
Thermal Design Power (TDP) |
73 W |
Maximum number of PCI Express lanes |
1 |
Stepping |
K0 |
Processor cores |
2 |
Tcase |
72.6 °C |
ECC supported by processor |
N |
Maximum internal memory supported by processor |
16 GB |
Processor cache type |
Smart Cache |
Number of Processing Die Transistors |
382 M |
PCI Express slots version |
2.0 |
Number of processors installed |
1 |
Processor cache |
4 MB |
Processor lithography |
32 nm |
Processor codename |
Clarkdale |
Memory clock speeds supported by processor |
1066, 1333 MHz |
Memory channels supported by processor |
Dual |
Conflict Free processor |
N |
PCI Express configurations |
1x16, 2x8 |
Memory bandwidth supported by processor (max) |
21 GB/s |
FSB Parity |
N |
CPU multiplier (bus/core ratio) |
24 |
Processor operating modes |
64-bit |
Processor frequency |
3.2 GHz |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
DMI |
Software
Operating system architecture |
64-bit |
Expansion slots
PCI slots |
3 |
PCI Express x1 slots |
2 |
PCI Express x4 slots |
1 |
PCI Express x16 slots |
1 |
Design
Number of 3.5" bays |
6 |
Cable lock slot |
Kensington |
Number of 5.25" bays |
2 |
Chassis type |
Tower |
Memory
ECC |
Y |
Memory slots |
4x DIMM |
Maximum internal memory |
16 GB |
Internal memory type |
DDR3-SDRAM |
Memory clock speed |
1333 MHz |
Memory layout (slots x size) |
1 x 2 GB |
Internal memory |
2 GB |
Storage
Hard drive speed |
7200 RPM |
Card reader integrated |
Y |
RAID support |
Y |
Number of hard drives installed |
1 |
Hard drive capacity |
250 GB |
Hard drive interface |
Serial ATA II |
Performance
Audio system |
HD |
Trusted Platform Module (TPM) |
Y |
Optical drive
Optical drive type |
DVD Super Multi |
Other features
Number of slots |
7 |
BIOS password |
Y |
Graphics adapter family |
Intel |
Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Networking features |
Gigabit Ethernet (10/100/1000) |
Built-in microphone |
Y |
Power
Power supply input voltage |
100 - 240 V |
Power supply input frequency |
50/60 Hz |
Power supply |
300 W |
Ports & interfaces
PS/2 ports quantity |
2 |
Firewire (IEEE 1394) ports |
1 |
Headphone outputs |
1 |
Microphone in |
Y |
Serial ports quantity |
1 |
Graphics
Number of displays supported (on-board graphics) |
2 |
On-board graphics adapter |
Y |
On-board graphics adapter family |
Intel HD Graphics |
On-board graphics adapter base frequency |
733 MHz |
Additionally
Intel AES New Instructions |
N |
System bus data transfer rate |
2.5 GT/s |
Processing die size |
81 mm² |
Hard disk drive, user password |
Y |
InTru™ 3D Technology |
N |
Chipset |
Intel 3450 |
Graphics |
GMA HD |
Ethernet LAN (RJ-45) ports quantity |
1 |

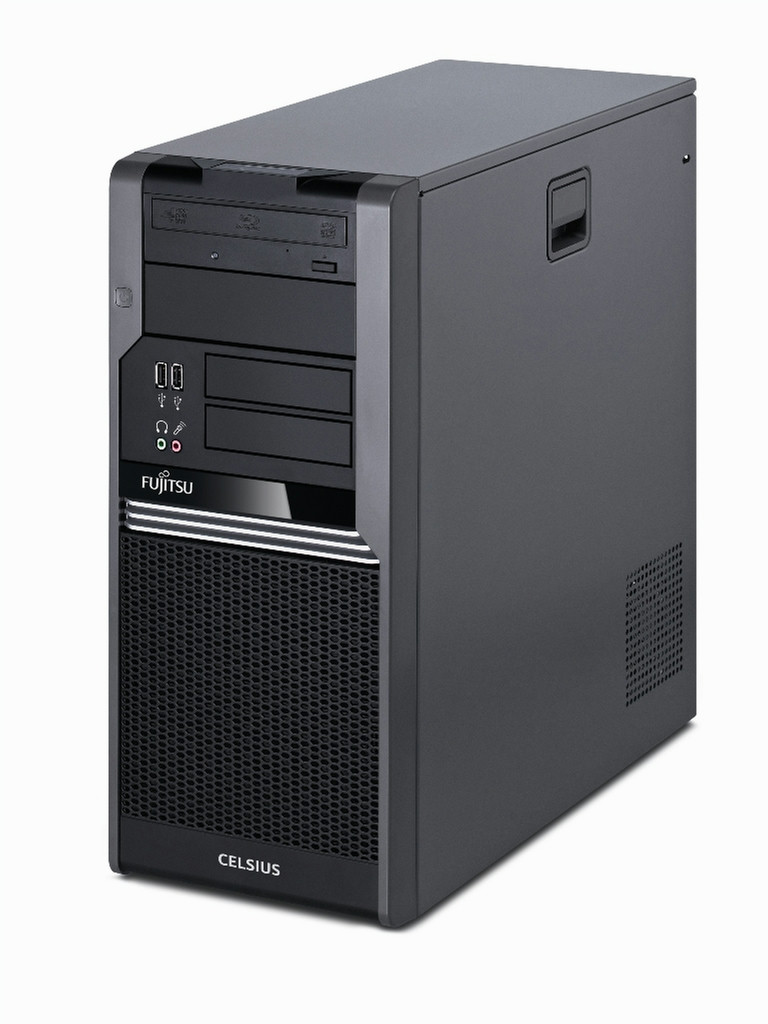

CELSIUS W380 - Intel Core i3-550 (3.20 GHz), 2GB DDR3 RAM, 250GB SATA II HDD, Gigabit Ethernet, Intel HD Graphics, DVD Super Multi, Windows 7 Professional 64-bit + 3 Years On-Site Service
Welcome to a world of power
The Fujitsu CELSIUS W380 is the versatile all-round workstation for entry-level graphics applications. Powered by the latest Intel® processors with application-optimized graphics cards, the Fujitsu CELSIUS W380 offers great performance without breaking the bank. Ample room for expandability, thanks to 4 hard disk drive bays and 7 PCI slots, ensures that the workstation can be continually customized to your needs.
QUIET OPERATION
Fujitsu workstations offer class-leading low noise emissions. This is achieved through an optimized thermal management system, which makes use of air tunnels to provide efficient airflow within the system. This gives the system excellent reliability and makes it exceptionally quiet, ensuring hours of distraction-free productivity.
WORKSTATION APPLICATION FIELDS
CELSIUS W380 The Fujitsu CELSIUS W380 is the ideal choice for business scenarios such as entry-level computer-aided design, digital content creation and electronic design automation.
