Expansion slots
| PCI Express x1 slots |
1 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
2 |
| PCI slots |
3 |
Memory
| ECC |
Y |
| Memory clock speed |
800 MHz |
| Memory layout (slots x size) |
2 x 1 GB |
| Internal memory type |
DDR2-SDRAM |
| Non-ECC |
Y |
| Internal memory |
2 GB |
Software
| Optional operating system supplied |
Windows XP Professional |
Power
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
410 W |
| Power supply input voltage |
100 - 240 V V |
Processor
| Processor front side bus |
1333 MHz |
| Processor cache type |
L2 |
| Processor cache |
6 MB |
| Processor frequency |
2.5 GHz |
Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
Other features
| Acoustic pressure emissions |
22 dB |
| External drive bays |
3 x 5.25" |
| Internal drive bays |
4 x 3.5" |
| Non-operating relative humidity (non-condensing) |
20 - 75% |
| Safety |
IEC60950, UL60950, CSA C22.2 No. 60950 |
| Electromagnetic compatibility |
EN55022 / CISPR22, EN55024 / CISPR24, EN61000-3-2/-3, CSA C108.8, IEC60601-1-2 (4), FCC class B |
Graphics
| Maximum graphics adapter memory |
0.5 GB |
Storage
| Hard drive capacity |
160 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA II |
Performance
| Audio system |
Realtek ALC262 |
Optical drive
| Optical drive type |
DVD Super Multi |
Additionally
| Chipset |
Intel X38 Express |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Graphics |
Quadro FX 1700 |

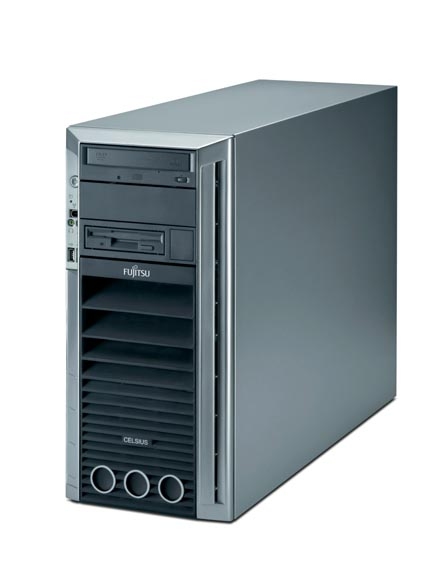

CELSIUS M460 Intel Core 2 Quad Q9300 (6M Cache, 2.50 GHz, 1333 MHz FSB), 2GB DDR2, 160GB SATA II, NVIDIA Quadro FX 1700 512MB, DVD Super Multi, Microsoft Windows Vista Business
Your new “Thoroughbred” Workstation
Do you need more power, more memory, more data security, and more expandability than a conventional PC can offer? Then choose the mid-range workstation CELSIUS M Series. CELSIUS workstations are equipped with the very latest technology and system components to deliver high-end performance. CELSIUS are certified for a huge variety of software applications.
- Mid-range single Intel® Xeon® Processor workstation
- Integrated system status display
- ENERGY STAR® certified configurations
- Supports up to two high-end graphics
- Up to 24 GB memory
ATTRACTIVE DESIGN
At Fujitsu, design is driven by function. Products are designed to look good and meet all your business needs.
After intensive field tests, we are now introducing a unified product design across our whole CELSIUS workstation line. The new products combine high quality, latest technology, reliability, environmental aspects and innovation with a puristic and timeless look. The so-called core and shell concept shows the perfect balance between technologies and shape.
WORKSTATION APPLICATION FIELDS
The CELSIUS M-Series is optimized for applications like high-end 3D computer aided design, digital content creation and financial analysis.
