Performance
| Motherboard form factor |
ATX |
| Audio system |
HDA |
Processor
| Number of processors installed |
1 |
| Processor core voltage (AC) |
0.800 - 1.225 V |
| Processor boost frequency |
2.93 GHz |
| Number of QPI links |
1 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor frequency |
2.66 GHz |
| Tcase |
67.9 °C |
| ECC supported by processor |
Y |
| Maximum internal memory supported by processor |
24 GB |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
QPI |
| Processor codename |
Bloomfield |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Processor cache type |
Smart Cache |
| Memory channels supported by processor |
Triple |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Processor front side bus |
1066 MHz |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| CPU multiplier (bus/core ratio) |
20 |
| Processor operating modes |
64-bit |
| Processor system type |
UP |
Ports & interfaces
| Serial ports quantity |
1 |
| Line-in |
Y |
| Firewire (IEEE 1394) ports |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| PS/2 ports quantity |
2 |
Other features
| External drive bays |
3 x 5.25" |
| Internal drive bays |
4 x 3.5" |
| Drive bays |
7 |
| Networking speed |
10/100/1000 Mbit/s |
| Mac compatibility |
N |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.2 |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
42.5 mm |
| Processor ARK ID |
39718 |
| Processor code |
SLBEW |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
Expansion slots
| PCI slots |
2 |
| PCI Express x4 slots |
2 |
| PCI Express x16 slots |
2 |
Storage
| Total storage capacity |
1000 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA II |
| Hard drive capacity |
1000 GB |
| Hard drive speed |
7200 RPM |
Memory
| Internal memory |
4 GB |
| ECC |
Y |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Memory slots |
6x DIMM |
| Maximum internal memory |
24 GB |
| Internal memory type |
DDR3-SDRAM |
Power
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
500 W |
| Power supply input voltage |
100 - 240 V V |
Software
| Optional operating system supplied |
Windows XP Professional |
Graphics
| Maximum graphics adapter memory |
0.768 GB |
Additionally
| Graphics |
Quadro FX 1800 |
| Intel AES New Instructions |
N |
| System bus data transfer rate |
4.80 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| InTru™ 3D Technology |
N |
| Chipset |
Intel X58 Express |
| Processing die size |
263 mm² |

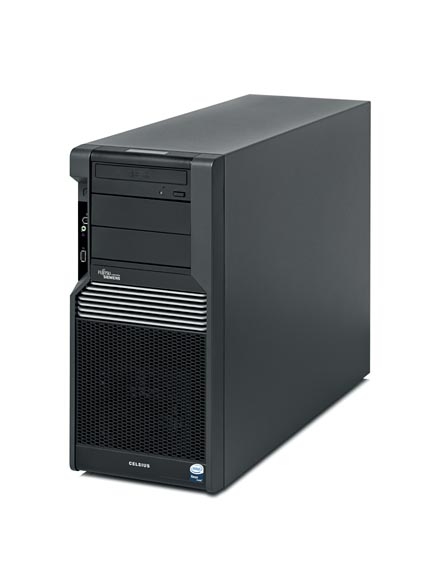

CELSIUS M470, ATX, 500W PSU, Intel Xeon W3520 2.66GHz, Intel X58 Express, Quadro FX 1800 768 MB, 2 x 500Gb SATA II 7.2k
Your new “Thoroughbred” Workstation
Do you need more power, more memory, more data security, and more expandability than a conventional PC can offer? Then choose the mid-range workstation CELSIUS M Series. CELSIUS workstations are equipped with the very latest technology and system components to deliver high-end performance. CELSIUS are certified for a huge variety of software applications
SPECIAL FEATURES
CELSIUS M Series
- Mid-range single Intel® Xeon® Processor workstation
- Integrated system status display
- ENERGY STAR® certified configurations
- Supports up to two high-end graphics
- Up to 24 GB memory
ATTRACTIVE DESIGN
At Fujitsu, design is driven by function. Products are designed to look good and meet all your business needs.
After intensive field tests, we are now introducing a unified product design across our whole CELSIUS workstation line. The new products combine high quality, latest technology, reliability, environmental aspects and innovation with a puristic and timeless look. The so-called core and shell concept shows the perfect balance between technologies and shape.
WORKSTATION APPLICATION FIELDS
The CELSIUS M-Series is optimized for applications like high-end 3D computer aided design, digital content creation and financial analysis.
