Other features
| Graphics adapter manufacturer |
ATI |
| Maximum number of SMP processors |
1 |
| BIOS password |
Y |
| External drive bays |
2x 5.25", 2x 3.5" |
| Internal drive bays |
4x 3.5" |
| Compliance industry standards |
WMI, BootP, PXE |
| Networking features |
Gigabit Ethernet (10/100/1000) |
Processor special features
| Intel Trusted Execution Technology |
Y |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel Demand Based Switching |
N |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
43546 |
| Intel 64 |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Processor
| Thermal Design Power (TDP) |
73 W |
| Conflict Free processor |
N |
| Stepping |
C2 |
| ECC supported by processor |
N |
| Number of processors installed |
1 |
| Processor boost frequency |
3.46 GHz |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Processor cache type |
Smart Cache |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
24 |
| Processor operating modes |
64-bit |
| Processor cores |
2 |
| PCI Express slots version |
2.0 |
| Processor frequency |
3.2 GHz |
| Tcase |
72.6 °C |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Number of Processing Die Transistors |
382 M |
Expansion slots
| PCI slots |
3 |
| PCI Express x1 slots |
2 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
1 |
Graphics
| On-board graphics adapter base frequency |
733 MHz |
| Maximum graphics adapter memory |
1.024 GB |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
Intel HD Graphics |
Storage
| Hard drive capacity |
320 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
Y |
| RAID support |
Y |
| Hard drive interface |
Serial ATA II |
| Number of hard drives installed |
1 |
Power
| Power supply input voltage |
100 - 240 V V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
300 W |
Memory
| Maximum internal memory |
16 GB |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
4x DIMM |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| DVI-I ports quantity |
1 |
| Line-in |
Y |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Performance
| Trusted Platform Module (TPM) |
Y |
| Audio system |
HD Audio |
Optical drive
| Optical drive type |
DVD Super Multi |
Design
| Cable lock slot |
Kensington |
| Chassis type |
Tower |
Additionally
| InTru™ 3D Technology |
N |
| Graphics |
FirePro V5800 |
| Hard disk drive, user password |
Y |
| Chipset |
Intel 3450 |
| Processing die size |
81 mm² |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
2.5 GT/s |

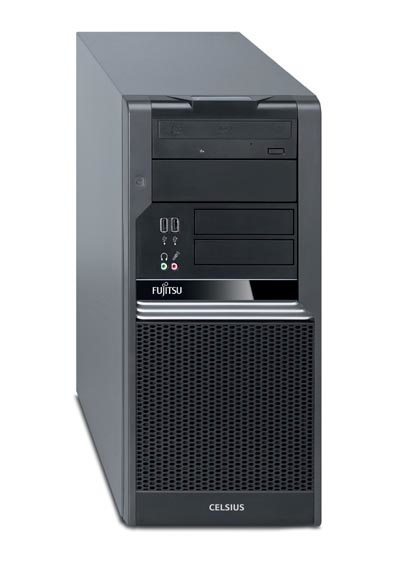

CELSIUS W380, Intel Core i5-650 (3.20 GHz, 4 MB, Intel HD Graphics), 2GB DDR3 1333MHz RAM, 320 SATA II 7200RPM HDD, Gigabit Ethernet, DVD Super Multi, MultiCard Reader 20in1, Windows 7 Professional, Tower, ATI FirePro V5800 (1024MB, PCIe x16, DL-DVI-I, 2x DP)
Welcome to a world of power
The CELSIUS W380 is the versatile all-round workstation for entry-level graphics applications. Powered by the latest Intel® processors with application-optimized graphics cards, the CELSIUS W380 offers great performance without breaking the bank. Ample room for expandability, thanks to 4 hard disk drive bays and 7 PCI slots, ensures that the workstation can be continually customized to your needs.
SPECIAL FEATURES
- High performance multi-core Intel® Core™ and Intel® Xeon® Processor workstation
- Excellent expandability
- Full remote System Management with iAMT v6.0 at no extra cost
- ENERGY STAR® certified configurations
- Up to 16 GB memory
QUIET OPERATION
Fujitsu workstations offer class-leading low noise emissions. This is achieved through an optimized thermal management system, which makes use of air tunnels to provide efficient airflow within the system. This gives the system excellent reliability and makes it exceptionally quiet, ensuring hours of distraction-free productivity.
WORKSTATION APPLICATION FIELDS
The CELSIUS W380 is the ideal choice for business scenarios such as entry-level computer-aided design, digital content creation and electronic design automation.
