Other features
| Maximum number of SMP processors |
1 |
| BIOS password |
Y |
| External drive bays |
2x 3.5", 2x 5.25" |
| Internal drive bays |
4x 3.5" |
| Networking features |
Gigabit Ethernet (10/100/1000) |
Processor special features
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
Y |
| Intel 64 |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
43550 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Supported instruction sets |
SSE4.2 |
Processor
| Thermal Design Power (TDP) |
73 W |
| CPU multiplier (bus/core ratio) |
25 |
| Processor operating modes |
64-bit |
| Number of processors installed |
1 |
| Processor boost frequency |
3.6 GHz |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| Processor cores |
2 |
| Processor frequency |
3.33 GHz |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
382 M |
| PCI Express slots version |
2.0 |
Expansion slots
| PCI slots |
3 |
| PCI Express x1 slots |
2 |
| PCI Express x4 slots |
1 |
| PCI Express x16 slots |
1 |
Memory
| Memory clock speed |
1333 MHz |
| ECC |
Y |
| Memory layout (slots x size) |
2 x 2 GB |
| Memory slots |
4x DIMM |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| Firewire (IEEE 1394) ports |
1 |
| PS/2 ports quantity |
2 |
| Line-in |
Y |
| Headphone outputs |
2 |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Graphics
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
| On-board graphics adapter base frequency |
733 MHz |
| Maximum graphics adapter memory |
0.256 GB |
| On-board graphics adapter family |
Intel HD Graphics |
Design
| Chassis type |
Tower |
| Cable lock slot |
Kensington |
Performance
| Trusted Platform Module (TPM) |
Y |
| Audio system |
HD |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
7200 RPM |
| Card reader integrated |
Y |
| RAID support |
Y |
| Hard drive interface |
Serial ATA II |
| Number of hard drives installed |
1 |
Optical drive
| Optical drive type |
DVD Super Multi |
Power
| Power supply input voltage |
100 - 240 V V |
| Power supply input frequency |
50 - 60 Hz |
| Power supply |
300 W |
Additionally
| Hard disk drive, user password |
Y |
| Intel AES New Instructions |
Y |
| InTru™ 3D Technology |
N |
| Chipset |
Intel 3450 |
| Graphics |
HD Graphics |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |

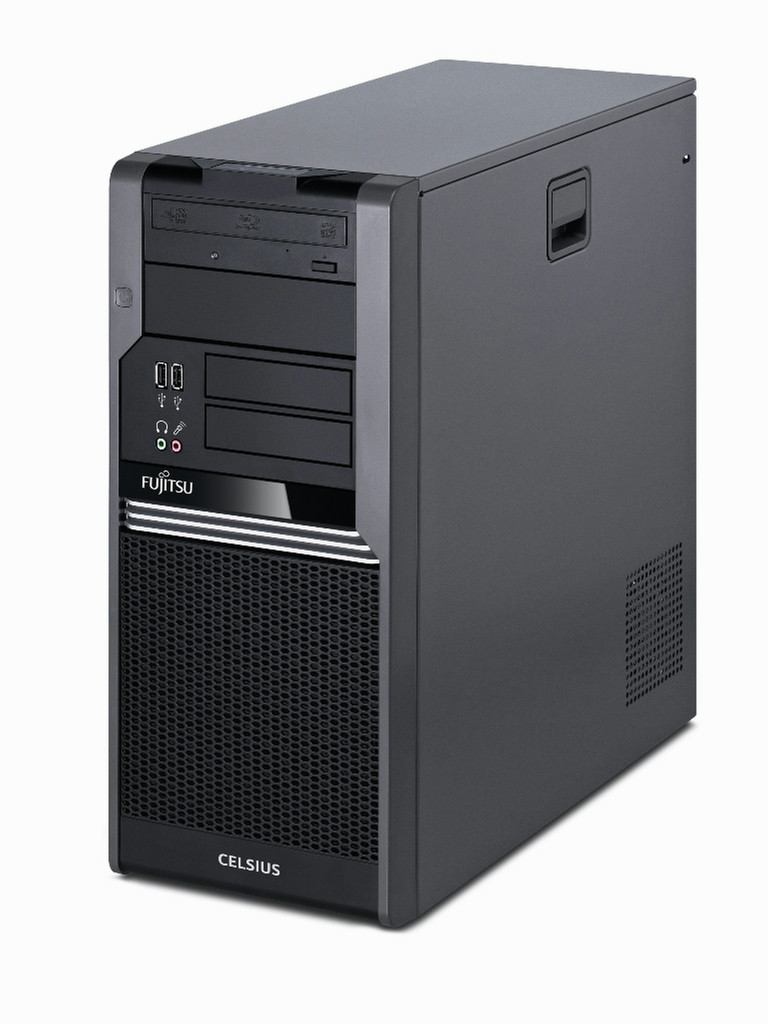

CELSIUS W380 E85+, Intel Core i5-660 (3.33 GHz, 4 MB, Intel HD Graphics), 4GB (2x 2GB) DDR3 1333MHz RAM, 500GB SATA II 7200RPM HDD, Gigabit Ethernet, DVD Super Multi, MultiCard Reader 20in1, Windows 7 Professional, Tower
Welcome to a world of power
The CELSIUS W380 is the versatile all-round workstation for entry-level graphics applications. Powered by the latest Intel® processors with application-optimized graphics cards, the CELSIUS W380 offers great performance without breaking the bank. Ample room for expandability, thanks to 4 hard disk drive bays and 7 PCI slots, ensures that the workstation can be continually customized to your needs.
SPECIAL FEATURES
- High performance multi-core Intel® Core™ and Intel® Xeon® Processor workstation
- Excellent expandability
- Full remote System Management with iAMT v6.0 at no extra cost
- ENERGY STAR® certified configurations
- Up to 16 GB memory
QUIET OPERATION
Fujitsu workstations offer class-leading low noise emissions. This is achieved through an optimized thermal management system, which makes use of air tunnels to provide efficient airflow within the system. This gives the system excellent reliability and makes it exceptionally quiet, ensuring hours of distraction-free productivity.
WORKSTATION APPLICATION FIELDS
The CELSIUS W380 is the ideal choice for business scenarios such as entry-level computer-aided design, digital content creation and electronic design automation.
