Processor special features
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
35569 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel® Turbo Boost Technology |
N |
Networking
| Network architecture |
Gigabit Ethernet |
Storage
| Hard drive size |
2.5 " |
| Hard drive interface |
Serial ATA |
| RAID support |
Y |
| Number of hard drives supported |
4 |
| Total storage capacity |
320 GB |
| Number of hard drives installed |
2 |
| Hard drive capacity |
160 GB |
| Hot-swap |
Y |
Processor
| Processor cache |
3 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
1 |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Processor frequency |
2.26 GHz |
| Stepping |
M0 |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Tjunction |
105 °C |
| Number of Processing Die Transistors |
410 M |
| Processor front side bus |
1066 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor codename |
Penryn |
| Processor code |
SL3BU |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor cores |
2 |
| Thermal Design Power (TDP) |
25 W |
| CPU multiplier (bus/core ratio) |
8.5 |
| Processor lithography |
45 nm |
| Processor package size |
35 mm |
Ports & interfaces
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Power
| Power supply type |
AC/DC |
| Power supply |
300 W |
| Number of power supply units |
1 |
Certificates
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Design
| Chassis type |
Tower |
| Optical drive type |
DVD Super Multi |
Memory
| Maximum internal memory |
16 GB |
| Memory slots |
4x DIMM |
| Memory clock speed |
667 MHz |
| ECC |
Y |
| Internal memory |
4 GB |
| Internal memory type |
DDR2-SDRAM |
Other features
| Mac compatibility |
N |
| Disk array controller |
Intel ICH9R |
| DVD read speed |
8 x |
| Drive bays |
4x 2.5", 1x 3.5", 1x 5.25" |
| DVD interface type |
SATA |
| CD read speed |
24 x |
Expansion slots
| PCI Express x8 slots |
3 |
| PCI slots |
1 |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| Processing die size |
107 mm² |
| Chipset |
Intel 5100 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

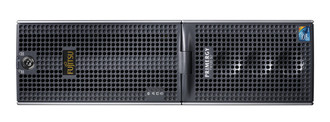

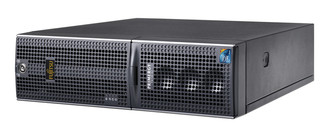

PRIMERGY TX120 S2, Intel Core2 Duo P8400 (2C, 2.26GHz, SLC:3MB, 1066MHz, 25W), 320GB (2x 160GB) 5400rpm 2.5" SATA 3Gb/s HDD, 4GB (2x 2GB) DDR2 ECC 667MHz PC2-5300 RAM, No HDD, DVD Super Multi
The PRIMERGY TX120 S2 carries on the TX120 tradition of space-saving, energy-saving and low noise. It even improves on its innovative predecessor by achieving the same performance but consuming 25% less power. It does so, thanks to the the carefully crafted cooling concept and the use of Intel® Core™2 Duo processors P8400 (25W) or T9400 (35W).
The TX120 S2 key features, make it a perfect fit for use in small offices, retail premises or libraries. Sporting up to 4x 320 GB SATA or 146 GB 15 000 rpm SAS hard disk drives, it can easily meet most storage requirements, at the right price. Its up to 16GB of RAM easily enable it to run it typical small business applications.
On-board iRMC2 remote management, makes the TX120 S2 a great choice for branch premises connected to a centralized infrastructure. The PRIMERGY TX120 S2: a compact server with great potential!
Features
-Its ultra-compact form factor (HxWxD 340x99x399mm) means that the PRIMERGY TX120 S2 fits everywhere, in either tower or desktop position.
-Thanks to the carefully crafted cooling concept, and the very low voltage Intel® Core™2 Duo processors, the TX120 S2 only consumes a min of 44W.
-The 27dB idle mode noise level, makes the TX120 S2 the perfect office server.
-Up to 4 SAS or SATA hot-plug hard disks, and up to 16GB of RAM.
-The iRMC2 chip on-board allows remote management.
Benefits
-Space-saving: Ideal for office, retail and smaller environments.
-Energy-saving: lowers the total cost of ownership.
-Whisper-quiet for ergonomic working environments.
-A powerful and expandable server.
-Ready for integration into enterprise system management networks.
