Processor special features
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| CPU configuration (max) |
1 |
| Intel Dual Display Capable Technology |
Y |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
43230 |
| Intel Trusted Execution Technology |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
N |
Storage
| Hot-swap |
N |
| Hard drive interface |
Serial ATA |
| RAID support |
Y |
| Number of hard drives supported |
2 |
| Total storage capacity |
250 GB |
| Number of hard drives installed |
1 |
| Hard drive capacity |
250 GB |
| Drive device, transfer rate |
384 MB/s |
| Hard drive size |
3.5 " |
Power
| Power supply type |
AC |
| Power supply |
250 W |
| Number of power supply units |
1 |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
Processor
| Bus type |
DMI |
| ECC supported by processor |
N |
| Tcase |
72.6 °C |
| Maximum internal memory supported by processor |
16 GB |
| Processor frequency |
2.8 GHz |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
382 M |
| Processor front side bus |
1066 MHz |
| PCI Express configurations |
2x8, 1x16 |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
17 GB/s |
| Processor cache type |
Smart Cache |
| Processor codename |
Clarkdale |
| Physical Address Extension (PAE) |
36 bit |
| Maximum number of PCI Express lanes |
16 |
| Thermal Monitoring Technologies |
N |
| Execute Disable Bit |
Y |
| Graphics & IMC lithography |
45 nm |
| Processor cache |
3 MB |
| Number of processors installed |
1 |
| Processor cores |
2 |
| Thermal Design Power (TDP) |
73 W |
| CPU multiplier (bus/core ratio) |
21 |
| Processor lithography |
32 nm |
| Processor package size |
37.5 mm |
Networking
| Networking features |
Gigabit Ethernet |
Certificates
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Graphics
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter base frequency |
533 MHz |
| On-board graphics adapter |
Y |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
2 |
| PCI slots |
1 |
Memory
| Maximum internal memory |
16 GB |
| Memory slots |
4 |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Other features
| Mac compatibility |
N |
| Disk array controller |
RAID 5/6 |
| DVD read speed |
16 x |
| DVD interface type |
SATA |
| CD read speed |
48 x |
Design
| Chassis type |
Mini Tower |
| Optical drive type |
DVD Super Multi |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |
| Chipset |
Intel 3420 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

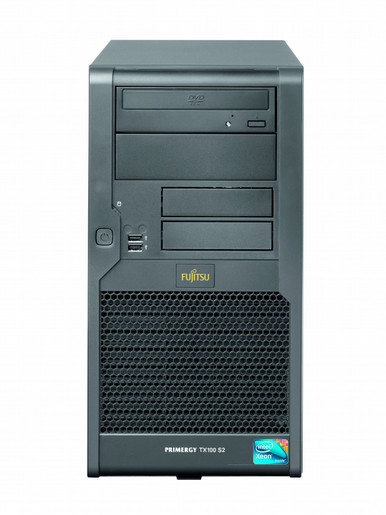

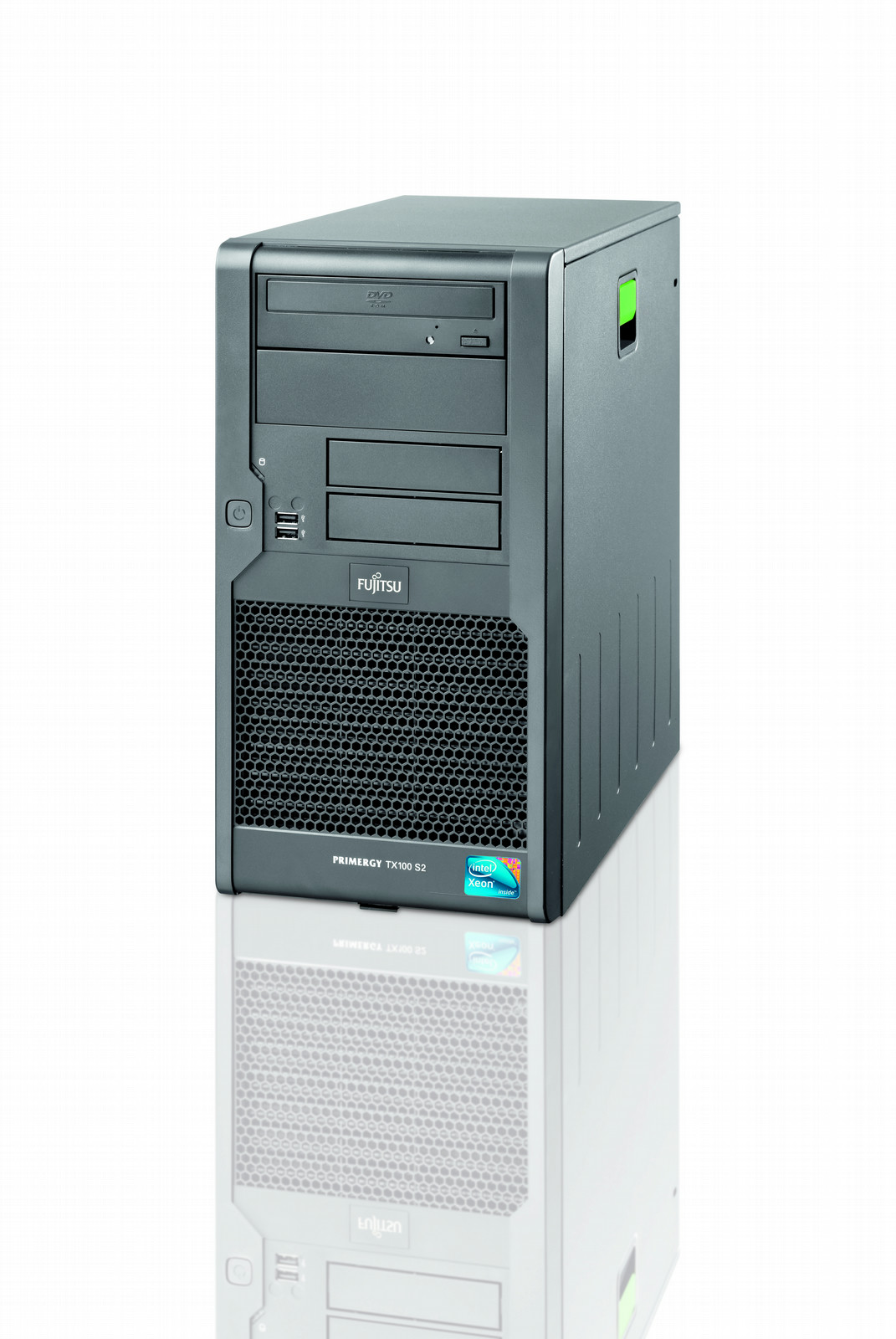

PRIMERGY TX100 S2, Mini Tower, Intel Pentium Dual Core G6950 (2.80GHz, 3MB, 1066MHz, 73W), 2GB DDR3 ECC 1333MHz PC3-10600 DIMM RAM, DVD Super Multi, 250GB SATA 7200rpm 3.5" 3Gb/s HDD, Gigabit Ethernet
Enter the world of servers – now with 0-Watt power consumption
PRIMERGY TX100 S2: enter the world of servers. It is the perfect system for SMEs looking to centralize their IT infrastructure, and offers a great price-performance ratio. Moreover, the TX100 S2 is incredibly silent making it an excellent choice for any office environment. With its revolutionary 0-Watt functionality in off-mode and an 88% efficient power supply unit, the TX100 S2 minimizes costs and the environmental impact.
The use of data security features such as ECC memory and optional RAID 5/6 ensures around-the-clock reliability. Finally, the TX100 S2 offers a choice of Intel® processors suited to the needs of SMEs. Step into the world of PRIMERGY servers.
Key features
-The wide array of configurable processors, up to Intel® Xeon® Processor 3400 series, plus a range of budget options, make the PRIMERGY TX100 S2 an excellent first server for SMEs.
-0-Watt power consumption in off-mode and power supply unit (PSU) with 88% energy efficiency.
-Low noise levels.
-Server reliability and security thanks to the use of components such as Intel® 3420 server chipset, ECC memory, optional Trusted Platform Module (TPM) and optional SATA RAID 5/6.
-Available with two different base units with either a maximum of either 2 or 4 hard disks.
Benefits
-Great price-performance ratio.
-Benefit from Fujitsu's pioneering experience in Green IT - save money and minimize environmental impact.
-Effective air flow design ensures a silent system for an ergonomic working environment.
-Keep business processes going - 24x7.
-Flexibility.
