Processor
| Processor boost frequency |
2.8 GHz |
| Stepping |
B1 |
| Processor frequency |
2.4 GHz |
| Maximum internal memory supported by processor |
32 GB |
| Bus type |
DMI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
72.7 °C |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
774 M |
| PCI Express configurations |
4x4, 2x8, 1x16 |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Dual |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBLJ |
| CPU multiplier (bus/core ratio) |
18 |
| Physical Address Extension (PAE) |
36 bit |
| Maximum number of PCI Express lanes |
1 |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Processor cores |
4 |
| Maximum number of SMP processors |
1 |
| Thermal Design Power (TDP) |
95 W |
| Processor lithography |
45 nm |
| Processor package size |
37.5 mm |
Other features
| Server system board BIOS |
SMBIOS V2.4 |
| Ventilation fan(s) |
1 |
| Mac compatibility |
N |
| Disk array controller |
SAS |
| Drive bays |
4x 3.5"/8x 2.5", 3x 5.25" |
| DVD interface type |
SATA |
Storage
| RAID support |
Y |
| Total storage capacity |
320 GB |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
2 |
| Hard drive capacity |
160 GB |
| Hot-swap |
Y |
| Hard drive size |
3.5 " |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
2 |
| PCI Express x1 slots |
2 |
| PCI slots |
1 |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
1 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
42927 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
Memory
| Internal memory |
4 GB |
| Maximum internal memory |
32 GB |
| Memory slots |
6x DIMM |
| Internal memory type |
DDR3-SDRAM |
| ECC |
Y |
Power
| Power supply type |
AC |
| Power supply |
350 W |
| Number of power supply units |
1 |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Gigabit Ethernet |
| Network ready |
Y |
Design
| Chassis type |
Tower (5U) |
| Optical drive type |
DVD Super Multi |
Additionally
| System bus data transfer rate |
2.5 GT/s |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Ethernet LAN connection |
Y |
| Processing die size |
296 mm² |
| Chipset |
Intel 3420 |
| InTru™ 3D Technology |
N |

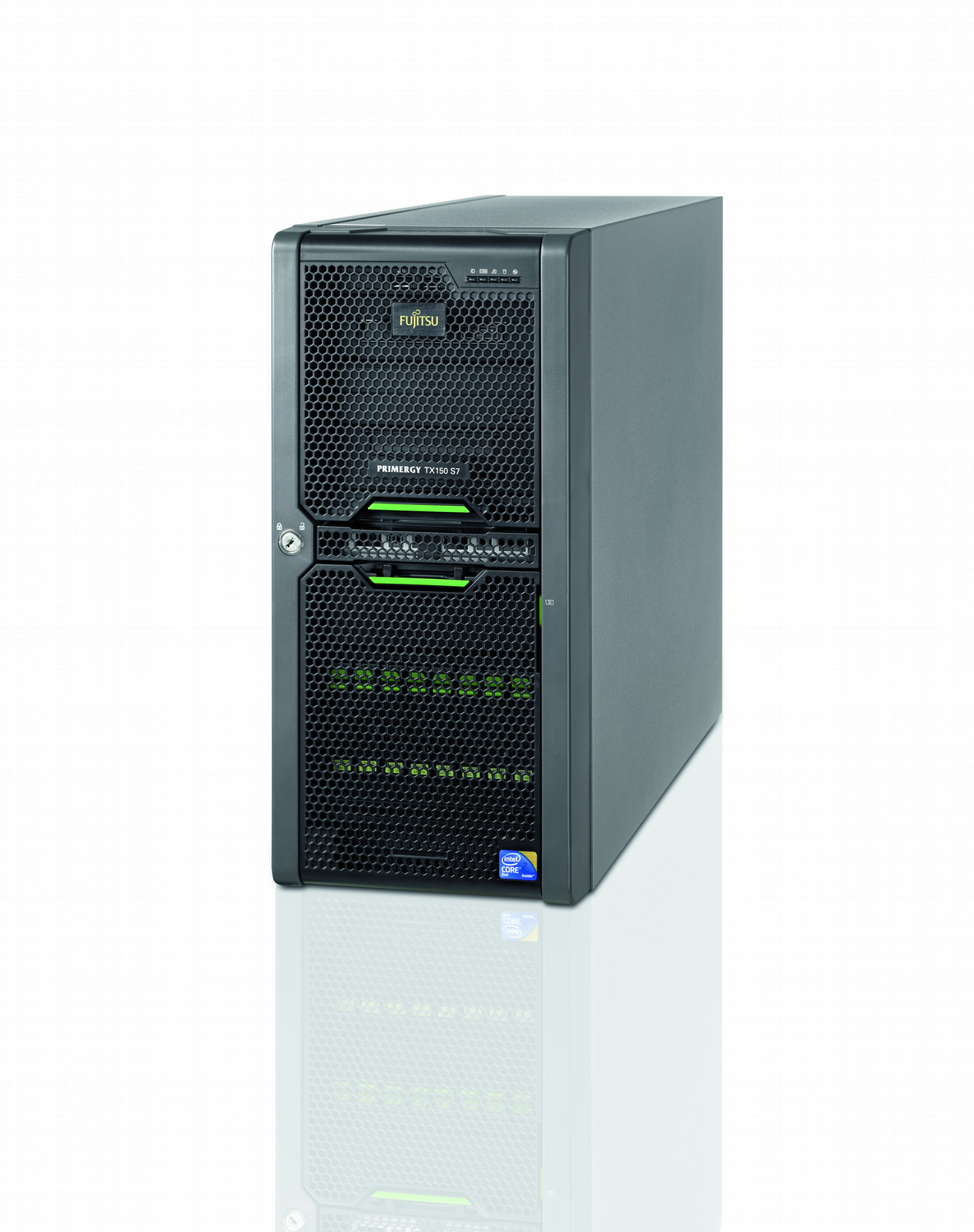

Primergy TX150 S7 - Intel Xeon X3430 (2.40GHz, 8MB, 1333MHz), 4GB DDR3 ECC RAM, 2x160GB SATA 3Gb/s 7200rpm hot-plug 3.5" HDD, Gigabit Ethernet, DVD Super Multi, Tower 5U, WIN Server 2008 R2 Foundation
The one-processor tower server - maximized!
The PRIMERGY TX150 S7: the right system for SMEs or non-mission-critical decentralized infrastructures where the main focus is on expandability and availability. These come from the 6 expansion slots (5 of which PCIe Gen 2) and up to 8x 2.5” hot-plug hard disks.
Increase the system’s availability and energy efficiency through the use of optional redundant power supplies boasting up to 89% energy efficiency. The TX150 S7 also offers up to the latest generation Intel® Xeon® processor 3400 series single processor platform, delivering excellent energy-efficient performance at an attractive price. Get real server performance in an Intel® Xeon®-based server. The PRIMERGY TX150 S7: the one processor tower server – maximized!
Key features
-By combining the latest Intel® mono-processor platform and SAS 2.0 hard disks with Fujitsu's engineering, you can get great performance with low energy consumption.
-Hot plug hard disks: choose between max. 4x 3.5 or max. 8x 2.5". Power supply units: choose between standard or redundant.
-Up to 32GB of RAM and 6 expansion slots (5 of which second generation PCIe slots).
-The PRIMERGY TX150 S7 can be integrated into a rack infrastructure with the tower to rack conversion kit.
-The green touch points, the system ID card and the customer self-service module make servicing the TX150 S7 easier.
Benefits
-High performance and energy efficiency.
-High availability options to suit your business.
-High expandability - the TX150 S7 grows with your business.
-High versatility - increases your investment's lifetime.
-High serviceability - saves your time.
