Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Power
| Power supply |
670 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Processor
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| ECC supported by processor |
Y |
| Tcase |
76 °C |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
1.86 GHz |
| Stepping |
D0 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| Memory clock speeds supported by processor |
800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBEZ |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor cache |
4 MB |
| Number of processors installed |
1 |
| Processor cores |
2 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
80 W |
| CPU multiplier (bus/core ratio) |
14 |
| Processor lithography |
45 nm |
| Processor package size |
42.5 mm |
Processor special features
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
37092 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
N |
Storage
| Hard drive interface |
Serial Attached SCSI (SAS), Serial ATA |
| RAID support |
Y |
| Hot-swap |
Y |
Memory
| Maximum internal memory |
96 GB |
| Memory slots |
12x DIMM |
| Memory clock speed |
1333 MHz |
| Internal memory |
2 GB |
Graphics
| Maximum graphics adapter memory |
16 MB |
Design
| Chassis type |
Tower (5U) |
| Optical drive type |
DVD-ROM |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
4.8 GT/s |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

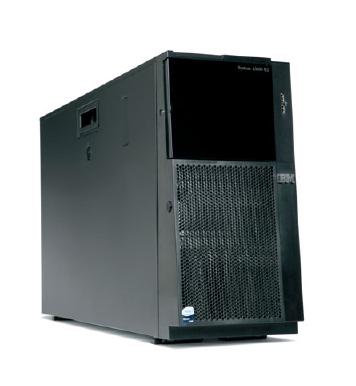

1x Dual-Core Intel Xeon E5502 1.86 Ghz (4 MB L2 cache), 2x 1 GB PC3-10600R-999 DDR3 Chipkill 1333 MHz RDIMM, 0x 0 GB SAS/SATA hard drive (open bay), SATA DVD-ROM, Integrated System Management processor, 2x Broadcom 5709C Gigabit Ethernet, SVGA (16 MB) video, 670 W power supply
- Helps lower IT lifecycle costs while providing outstanding performance
- Customizable design with configuration flexibility for affordable growth
- Provides extensive systems management capabilities right out of the box
Performance features, entry price
For growing businesses and branch offices that want high performance without the high price tag, the IBM® System x3400 M2 offers the availability and reliability you need at a price you can afford. Designed for flexibility and growth, this dual-socket server offers exceptional value that accommodates expanding business needs.
Expand your business, not your budget
You plan for growth, but when and how much can be difficult to project. The x3400 M2 offers flexible configuration options and easy migration through support for a wide range of technologies. Start with a single Intel® Xeon® four-core processor, and add a second to double your processing capability. Select the right combination of hard disk drive size, capacity and performance for today, and easily incorporate additional drives tomorrow.
