Processor special features
| Intel 64 |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
37096 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
Processor
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| ECC supported by processor |
Y |
| Tcase |
76 °C |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.13 GHz |
| Stepping |
D0 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
16 |
| Embedded options available |
N |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| Memory clock speeds supported by processor |
800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBF8 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Thermal Design Power (TDP) |
80 W |
| Processor package size |
42.5 mm |
| Number of QPI links |
2 |
| Processor cache |
4 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Processor lithography |
45 nm |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
Power
| Power supply |
675 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Design
| Chassis type |
Rack (2U) |
| Optical drive type |
N |
Storage
| Hard drive interface |
Serial ATA |
| RAID support |
Y |
| Total storage capacity |
1000 GB |
| Number of hard drives installed |
2 |
| Hard drive capacity |
500 GB |
| Hot-swap |
Y |
| Hard drive size |
3.5 " |
Memory
| Maximum internal memory |
96 GB |
| Memory slots |
12x DIMM |
| Internal memory |
4 GB |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
Graphics
| Maximum graphics adapter memory |
16 MB |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
4.8 GT/s |
| Graphics |
G200eV |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
1x Quad-Core Intel Xeon E5506 2.13 GHz (4 MB cache), 1x 4GB (Dual-Rank x8) PC3L-10600 CL9 ECC DDR3 1333 MHz LP RDIMM, 2x 500GB Simple-Swap SATA HD, Integrated Management processor, 2 x Intel 82575 Gigabit Ethernet, Matrox G200eV (16 MB) video, 675 W + 500GB SATA II Hot-Swap HDD
- Provides a value alternative to traditional enterprise offerings with cost-optimized performance and functionality
- Delivers ultimate reliability and simplified management with IBM-backed service, support and tools
- Offers customizable design and flexible configurations for affordable growth
A cost-focused alternative

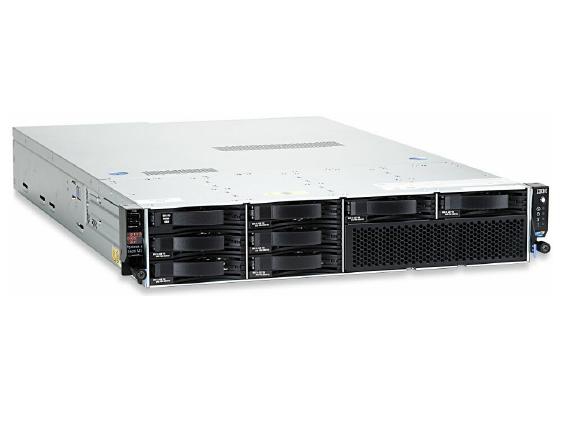

IBM System x3620 M3 gives growing businesses an affordable alternative to traditional enterprise server offerings. Built on the latest Intel® Xeon® technology, the x3620 M3 helps keep costs down by providing energy efficiency, integrated software RAID and support for up to eight high-capacity, low-cost 3.5" hard disk drives.
IBM designed, tested and certified
Reliable and easy to manage, the x3620 M3 is backed by IBM service and support. Embedded RAID and an optional 6 Gbps adapter can protect your data, while optional redundant power and cooling promote uptime. Access to IBM Systems Director, ToolsCenter and IBM Integrated Managed Module (IMM) capabilities offer proactive support to help maintain availability.
