BIOS
| ACPI version |
1.0b |
| BIOS type |
AWARD |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| eSATA ports quantity |
2 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Firewire (IEEE 1394) ports |
1 |
| PS/2 ports quantity |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Performance
| Audio system |
HD |
| Motherboard chipset family |
AMD |
| Component for |
PC |
Memory
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Memory voltage |
1.5 V |
| Supported memory types |
DDR3-SDRAM |
Internal I/O
| Front panel audio connector |
Y |
| CPU fan connector |
Y |
| EPS power connector (8-pin) |
Y |
| Number of SATA III connectors |
8 |
| Number of IEEE1394 connectors |
1 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| S/PDIF out connector |
Y |
| USB 2.0 connectors |
3 |
| Number of SATA connectors |
8 |
Expansion slots
| PCI Express x4 slots |
2 |
| PCI Express x8 slots |
1 |
| PCI Express x16 slots |
2 |
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
Graphics
| On-board graphics adapter |
N |
Packaging content
| Trial software |
Norton Internet Security |
Other features
| Controller interface type |
Marvell 88SE9172 |
Processor
| Maximum number of SMP processors |
1 |
Additionally
| System bus data transfer rate |
5.2 GT/s |
| Chipset |
AMD 990FX |
| Ethernet LAN (RJ-45) ports quantity |
1 |

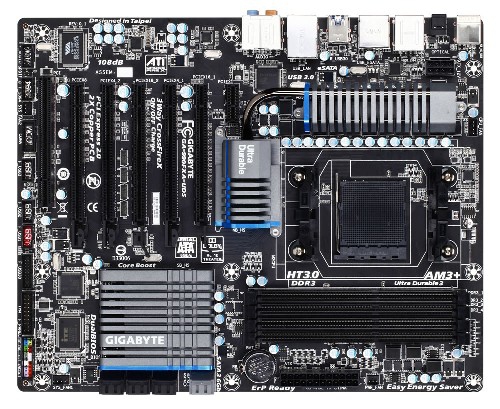

GA-990FXA-UD5 - AM3+, 5200 MT/s, DDR3 DIMM, 10/100/1000 Mbit, 14xUSB 2.0/1.1, 4xUSB 3.0/2.0, ATX
The 990FXA-UD5 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. All USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.
