Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
2 |
| PS/2 ports quantity |
1 |
| Serial ports quantity |
1 |
| Parallel ports quantity |
1 |
Performance
| Audio system |
Realtek ALC887 |
| Component for |
PC |
Memory
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
| Supported memory types |
DDR3-SDRAM |
Internal I/O
| Serial port headers |
1 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
| Number of chassis fan connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| S/PDIF out connector |
Y |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
UEFI AMI |
Graphics
| Maximum graphics adapter memory |
2000 MB |
Additionally
| Graphics |
Radeon HD 8210 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
AMD E1-2100 (1.0 GHz) APU with Radeon HD 8210 SoC, 2 x DDR3 DIMM, PCI, PS/2, D-Sub, HDMI, USB 3.0 x 2, USB 2.0 x 4, RJ-45, Mini-ITX

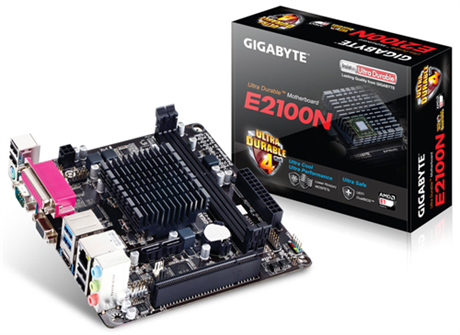

<b>GIGABYTE E2100N</b>
The GIGABYTE E2100N Mini-ITX motherboard is a fully integrated PC motherboard featuring the AMD® Dual Core E1-Series APU with Radeon™ HD 8210 graphics (DX11). Designed for compact, small form factor PC systems and devices, the GIGABYTE E2100N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via HDMI and VGA ports, while the HDMI port offers native support for 4K resolution displays.
<b>AMD® E1-2100 APU with Radeon™ HD 8210</b>
The AMD® E1-2100 APU with Radeon™ HD 8210 Dual-Core processor is the latest system on chip (SoC) from AMD, combining CPU, graphics and memory controller in one package. Based on the 28nm manufacturing process, the AMD® E1-2100 uses the smallest package of any desktop processor within a low thermal envelope of on 9 watts. The AMD® E1-2100 APU boasts excellent performance including DX11 gaming on Radeon™ HD 8210, plus a dedicated hardware motion video decoder for smooth HD video playback.
<b>GIGABYTE Ultra Durable™ 4 Plus</b>
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
<b>4K Ultra HD Support</b>
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE FT3 series motherboards provide native 4K support with Kabini APU integrated graphics via HDMI port.
<b>HDMI Interface</b>
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
<b>High ESD protection for USB and LAN (USB3.0 only)</b>
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
<b>One fuse per USB port (USB3.0 only)</b>
On GIGABYTE motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer.
<b>On/Off Charge Technology</b>
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
<b>ErP Lot 6 support</b>
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
