Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| Parallel port via internal header |
Y |
| Number of SATA Express connectors |
2 |
| Number of M.2 (M) slots |
2 |
| Front panel connector |
Y |
Performance
| Motherboard form factor |
ATX |
| Linux operating systems supported |
Y |
| Motherboard chipset family |
Intel |
| Audio output channels |
7.1 channels |
| Supported storage drive types |
HDD, SSD |
| Component for |
PC |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Memory
| Supported memory clock speeds |
2133, 2400 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Supported memory module capacities |
4GB |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity |
1 |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
Processor
| Processor socket |
LGA 1151 (Socket H4) |
| Compatible processor series |
Celeron, Core i3, Core i5, Core i7, Pentium |
Weight & dimensions
| Depth |
305 mm |
| Width |
244 mm |
Additionally
| Chipset |
Intel H270 |
| Intel Optane technology ready |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

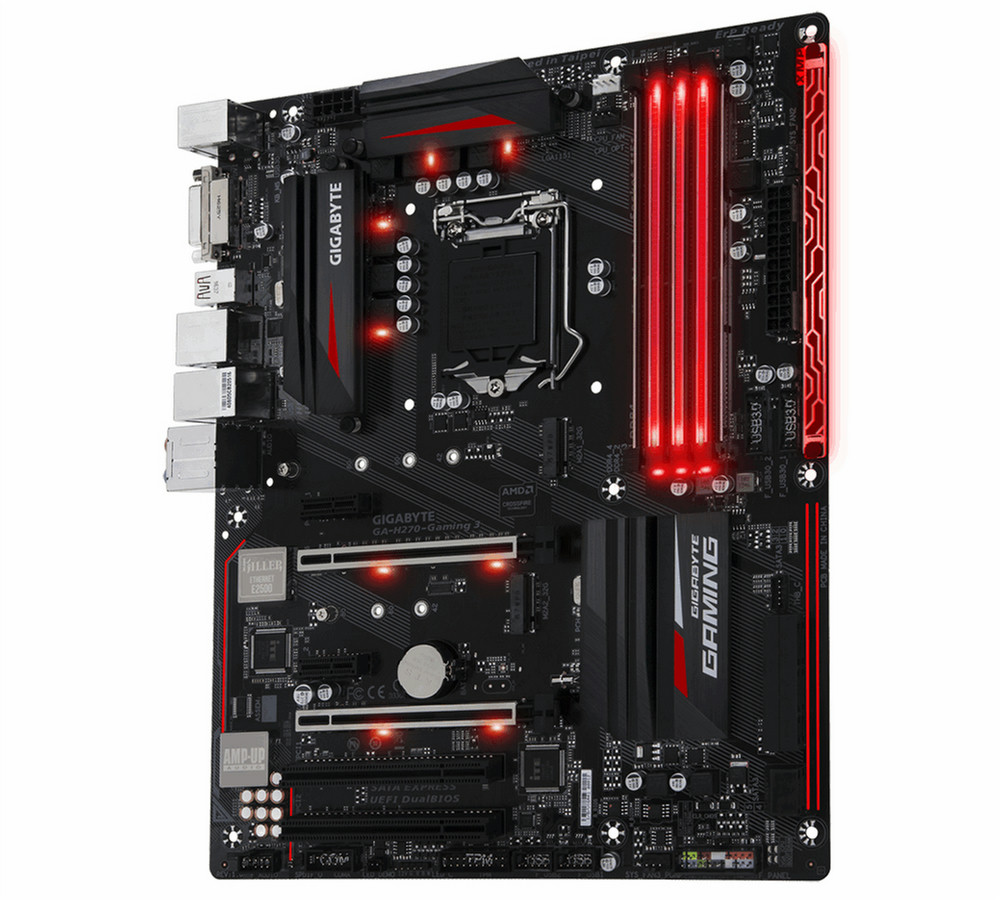

GA-H270-Gaming 3, Intel H270 Express Chipset, 4 x DDR4 DIMM up to 64 GB, 1 x HDMI, 1 x DVI-D
- Supports 7th/ 6th Generation Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
- 2- Way Graphics Support with Dual Armor and Ultra Durable™ Design
- Dual NVMe PCIe SSDs in RAID 0 Support
- Intel® Optane™ Memory Ready
- Sound Blaster X-Fi MB5+ALC 1220 120dB SNR HD Audio
- Killer™ E2500 Gaming Network
- USB DAC-UP 2 with Adjustable Voltage
- RGB FUSION LED Light Show design
- Swappable Overlay for Accent LED
- Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 2 SATA Express Connectors for up to 16Gb/s Data Transfer
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
- GIGABYTE UEFI DualBIOS™
- APP Center Including Cloud Station™ Utility
