Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
1 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
N |
| S/PDIF in connector |
N |
| TPM connector |
N |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| IPMI 2.0 slot |
N |
| Floppy disk drive connector |
N |
| Number of SATA III connectors |
4 |
| EPS power connector (8-pin) |
N |
| Parallel connector |
N |
| CD/AUX audio in |
N |
| CPU fan connector |
Y |
| Number of COM connectors |
N |
| GAME/MIDI connector |
N |
| EZ plug connector |
N |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| CF card connector |
N |
| CNR slot |
N |
| Audio Modem Rise (AMR) slot |
N |
| Dual Power System (DPS) slot |
N |
| Serial port headers |
1 |
Performance
| Motherboard form factor |
Mini ATX |
| Supported processor sockets |
LGA 1150 (Socket H3) |
| Motherboard chipset family |
Intel |
| Trusted Platform Module (TPM) |
N |
| PC health monitoring |
CPU, FAN, Temperature |
| Processor with Intel Graphics Technology required |
Y |
| Audio system |
Realtek ALC892 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.5 V |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
EFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
2.0a |
Processor
| Maximum number of SMP processors |
1 |
Back panel I/O ports
| S/PDIF in port |
N |
| WiFi-AP antenna jack |
2 |
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| DVI-I ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
2 |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express configurations |
1x16 |
| PCI Express slots version |
3.0 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
| HDCP |
Y |
Networking
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel Z87 |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics |
| Dual-link DVI |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

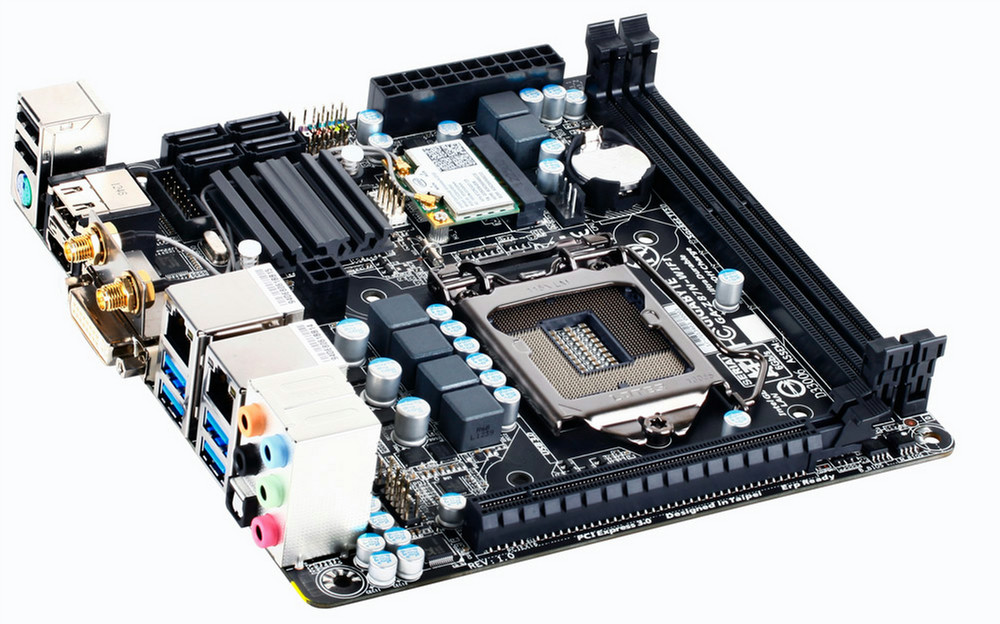

GA-Z87N-WIFI, LGA 1150, Intel Z87, 2 x DDR3 1600/1333MHz, Intel HD Graphics, 1 x PCI Express 3.0 x16, 4 x SATA 6.0Gb/s, Dual GbE LAN, Wi-Fi 802.11 b/g/n, Bluetooth 4.0, EFI DualBIOS, Mini-ITX
- Supports 4th Generation Intel® Core™ processors.
- Mini ITX Form Factor (17*17cm).
- GIGABYTE Ultra Durable™ 4 Plus Technology.
- Supports Intel® WiFi/ WIDI technology.
- Integrated Bluetooth 4.0 and Intel® Wi-Fi module.
- GIGABYTE Hybrid Digital Power Engine.
- GIGABYTE UEFI DualBIOS.
- GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power).
- GIGABYTE On/Off Charge™ for USB devices.
- Dual LAN with high ESD Protection.
- Dual HDMI 1.4, DVI-I.
GIGABYTE 8 Series Motherboards.
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.
Next Gen Intel® 8 Series Platform.
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.
