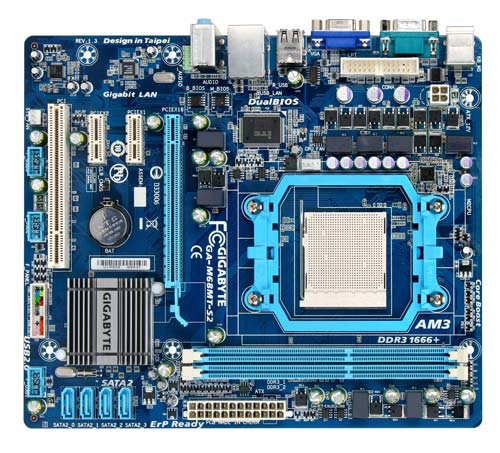

GA-M68MT-S2-R1.3
DISCLAIMER: these specs are for revision 1.3.
<b>Introduction</b>
The GA-M68MT-S2, based on NVIDIA GeForce7025/ nForce630a chipset and supports new generation of 45nm AMD AM3 Phenom II/ AthlonII processors, integrated DirectX 9 graphics engine, DDR3 memory controller, PCI Express interface and so on. With the 50000 hours Japanese solid capacitors for CPU VRM design, the GA-M68MT-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
<b>PCI Express Interface</b>
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
<b>SATA 3Gb/s & RAID</b>
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA<sup>®</sup> RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
<b>High Definition Audio</b>
Experience home theater-quality sound with your PC using High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.3X USB power delivery for greater compatibility and extra power for USB devices
Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
Supports new generation of AMD Phenom™ II X6 processors
Supports AMD AM3 Phenom™ II/ Athlon™ II processors
Exclusive Core Boost technology to unleash CPU performance
Solid capacitors design for CPU VRM
Dual Channel DDR3 1333+ for outstanding system performance
Integrated NVIDIA CineFX 3.0 graphics
Ultimate graphics performance with PCI-E x16 interface
Integrated SATA 3Gb/s with RAID function
Features high speed Gigabit Ethernet
Integrated 6/8-Channel High Definition audio
Meet European Union ErP(Energy-related-Products) requirement
* If you install AMD AM3 CPU on this motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3 CPU will not be impacted. Please refer "CPU Support List" for more information.
