Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio output channels |
7.1 channels |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133 MHz |
| Non-ECC |
Y |
| ECC |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
6 |
| USB connector type |
USB Type-A |
BIOS
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Internal I/O
| USB 2.0 connectors |
6 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
6 |
| Supported storage drive interfaces |
M.2, Serial ATA |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| Number of SATA Express connectors |
1 |
| Number of M.2 (M) slots |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
Networking
| Ethernet interface type |
Gigabit Ethernet |
Additionally
| Chipset |
Intel C232 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

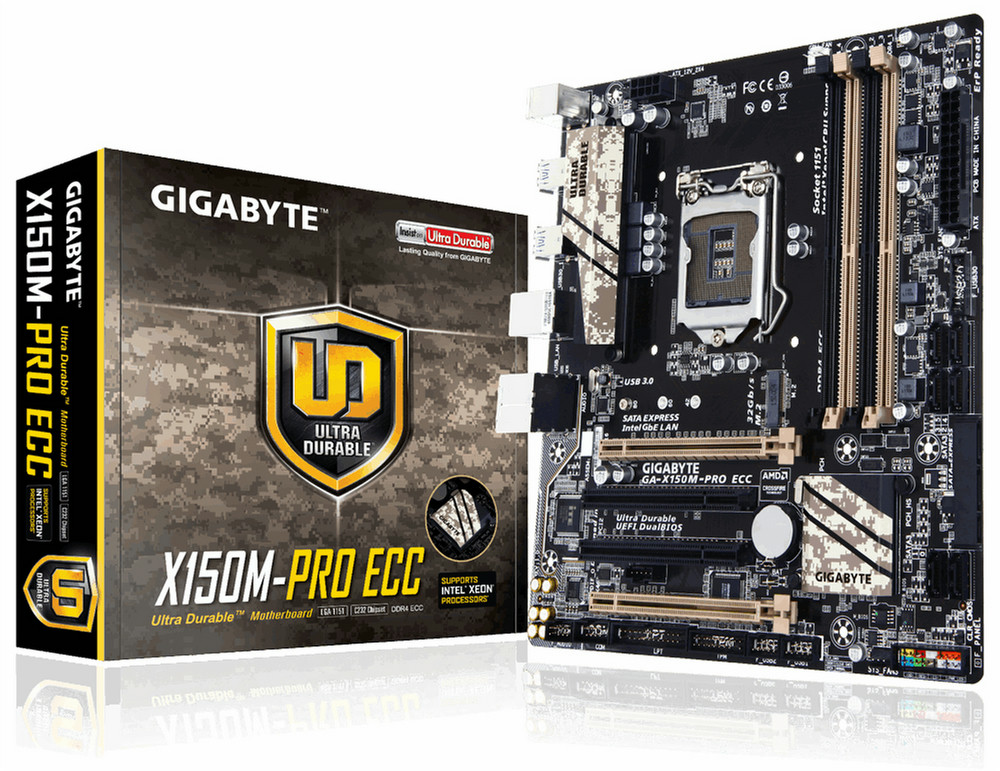

GA-X150M-PRO ECC, DDR4, Realtek ALC892, 2/4/5.1/7.1, 6 x SATA 6Gb/s, 6 x USB 2.0/1.1, 6 x USB 3.0/2.0
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE C232 Series motherboards support the Intel® Xeon® E3-1200 v5 processor and 6th Gen. Intel® Core™ i3/Pentium®/Celeron® processors, bringing cutting edge features and ultimate performance to your next PC build.
Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.
Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Intel® GbE LAN with cFosSpeed
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in a crowded LAN environments.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
All New GIGABYTE App Center Including EasyTune™, Cloud Station™ Utilities and More...
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
