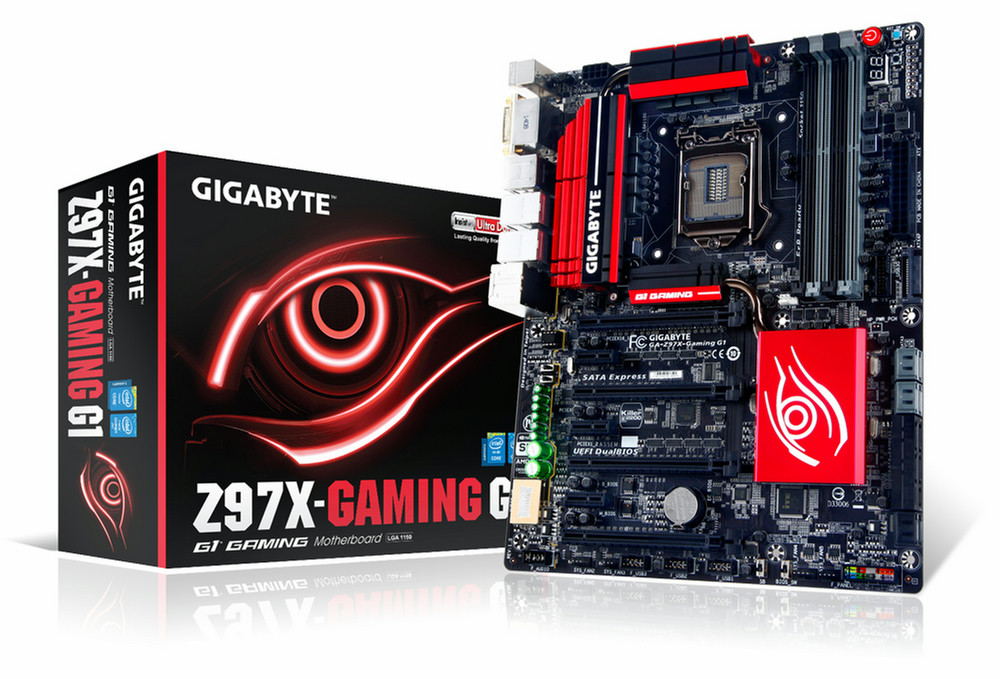

Gigabyte GA-Z97X-Gaming G1 Intel® Z97 Express Chipset Socket H3 (LGA 1150) ATX motherboard

Gigabyte GA-Z97X-Gaming G1 Intel® Z97 Express Chipset Socket H3 (LGA 1150) ATX motherboard

MPN: GA-Z97X-GAMING G1
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Motherboard form factor ATX
Motherboard chipset family Intel
Component for PC

Memory

Supported memory clock speeds 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 2933, 3000 MHz
Non-ECC Y
Supported memory types DDR3-SDRAM
Memory channels Dual
Memory slots type DIMM
Number of memory slots 4
Maximum internal memory 32 GB

BIOS

BIOS memory size 256 MB
BIOS type UEFI AMI
Clear CMOS button Y
Clear CMOS jumper Y
ACPI version 5.0

Internal I/O

USB 2.0 connectors 3
ATX Power connector (24-pin) Y
USB 3.0 (3.1 Gen 1) connectors 1
Number of SATA III connectors 10
CPU fan connector Y
Front panel audio connector Y

Graphics

Maximum graphics adapter memory 1000 MB
Number of displays supported 3

Expansion slots

PCI Express x1 (Gen 2.x) slots 3
PCI Express x16 (Gen 3.x) slots 4

Back panel I/O ports

PS/2 ports quantity 1
Headphone outputs 1
S/PDIF out port Y
Microphone in Y
DVI-I ports quantity 1
DisplayPorts quantity 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 6
HDMI ports quantity 1

Additionally

Chipset Intel Z97
Ethernet LAN connection Y
Ethernet LAN (RJ-45) ports quantity 2
Intel Z97 Express Chipset, 4 x DDR3 DIMM up to 32 GB, Creative Sound Core 3D chip, Qualcomm Atheros Killer E2201 chip, Intel GbE LAN phy, ATX Form Factor - Supports 4th and 5th Generation Intel® Core™ processors
- Onboard Creative Sound Core3D™ quad-core audio processor
- AMP-UP Audio technology with exclusive Upgradable OP-AMP
- Audio Noise Guard with LED path lighting
- Dual DAC-UP USB ports
- Gold plated display and audio ports
- High end Nichicon audio capacitors
- Killer™ E2200 and Intel gaming networking
- Extreme gaming 4-way graphics support
- SATA Express support for 10 Gb/s data transfer
- Long lifespan Durable Black Solid caps
- APP Center including EasyTune™ and Cloud Station™ utilities
- GIGABYTE UEFI DualBIOS™
