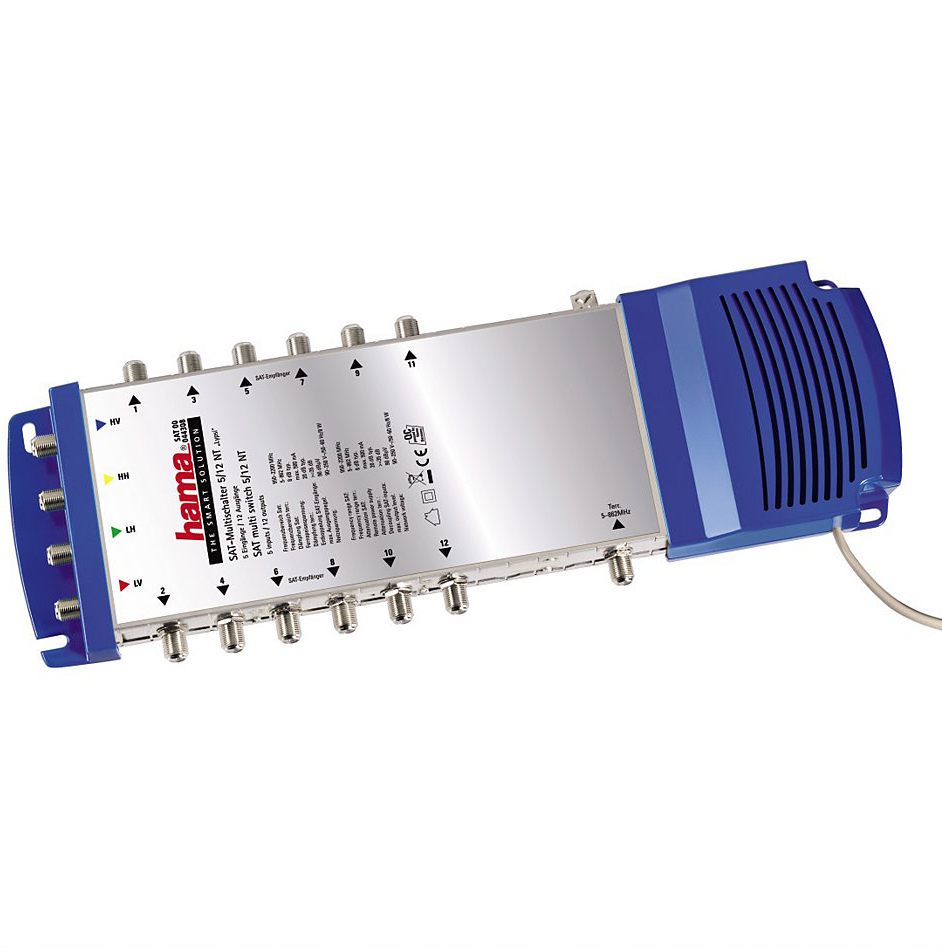

Hama Lypsi SE 5/12NT

00044308, "Lypsi SE" SAT Multi-Swith, 5/12NT - Multi-switch for connecting several receivers to one LNB
- Suitable for Quad switch (22 KHz signal supplied to LNB)
- With switched-mode power supply for LNB current supply
- Remote power voltage (DC power): up to 500 mA/18 V
- Inputs: 4x SAT, 1x terrestrial
- Outputs: 12
- Ground connection: 1x terminal screw
- Frequency range/attenuation:
SAT = 950 - 2200 MHz / 8 dB typ.
terrestrial = 5 - 862 MHz / 20 dB typ./ return path compatible
- V/H: 14 V/18 V and 22 KHz switching signal
- Decoupling SAT inputs: >= 35 dB
- Maximum output level: 90 dBmV
- Integrated switched-mode power supply: 18 V/0.5 A
- Mains voltage: 90-250 V~/50-60 Hz/8 W

- Colour: Blue
- Inputs: F-Coupling
- Number of Inputs: 5
- Number of Outputs: 12
- Outputs: F-Coupling
