Technical details
| BD-Live |
Y |
| Karaoke |
N |
| Apple docking compatibility |
Not supported |
| Deep colour support |
Y |
Satellite speakers
| Number of satellite speakers |
5 |
| Satellite speaker mid-range driver diameter |
3 " |
| Satellite speaker tweeter diameter |
0.5 " |
| Satellite speaker frequency range |
45 - 20000 Hz |
| Satellite speaker impedance |
8 Ω |
| Satellite speaker sensitivity |
86 dB |
| Satellite speaker peak power |
80 W |
| Wireless satellite speakers |
N |
Video
| Analog signal format system |
NTSC, PAL |
| Full HD |
Y |
Subwoofer
| Subwoofer driver diameter (imperial) |
8 " |
| Subwoofer RMS power |
60 W |
| Wireless subwoofer |
N |
Audio
| MP3 bit rates |
32 - 320 Kbit/s |
| Audio output channels |
2.1 channels |
| Audio decoders |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS |
| Total Harmonic Distortion (THD) |
0.1% |
| Signal-to-Noise Ratio (SNR) |
90 dB |
Weight & dimensions
| Satellite speaker dimensions (WxDxH) |
100 x 92 x 167 mm |
| Satellite speaker weight |
700 g |
| Subwoofer weight |
7700 g |
| Subwoofer dimensions (WxDxH) |
267 x 267 x 353 mm |
| Main unit dimensions (WxDxH) |
401 x 260 x 102 mm |
| Main unit weight |
6400 g |

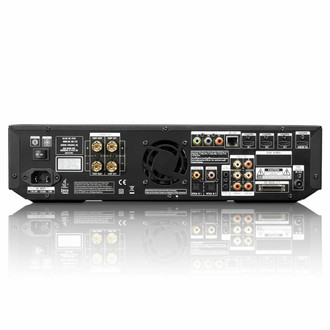

Ports & interfaces
| Digital audio optical in |
2 |
| Number of HDMI outputs |
1 |
| Digital audio coaxial in |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| AUX in |
Y |
| HDMI in |
3 |
Optical drive
| Number of optical discs |
1 discs |
| Disc loading type |
Slot disc loader |
| Disc types supported |
BD, BD-R, BD-R DL, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW |
| Playback disc formats |
Blu-Ray video, CD audio |
Management features
| Handheld remote control |
Y |
Radio
| FM radio |
Y |
| Supported radio bands |
FM |
| FM band range |
87.5 - 108 MHz |
Networking
| Near Field Communication (NFC) |
N |
| Wi-Fi |
N |
Additionally
| Ethernet LAN connection |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Blu-Ray, DVD, 3D, Dolby Digital, FM, USB, HDMI 1.4, MP3, 45Hz – 20kHz, 60W RMS Sub
Stereo System
A Stereo System combines an AV or Blu-ray Disc receiver with a 2.1-channel loudspeaker system (left, right and subwoofer)
HDMI
HDMI™ connectivity helps you get the most from 3D sources, with the highest-quality digital video and audio and easy one-wire connections.
3.5 mm stereo input
The 3.5mm auxiliary input allows you to connect external (portable) sources, mostly through their headphone output
Blu-ray 3D
Blu-ray 3D™ disc playback offers high-definition audio and 3D video (HD), with more than five times the storage capacity of traditional DVDs
Built-in FM Tuner
A built-in tuner allows to listen to FM radio stations without the need for an external radio source
Award
Our product has been acclaimed by the international press for its outstanding audio performance and/or striking design
Complete stereo home theater audio system with BD player and FM tuner.

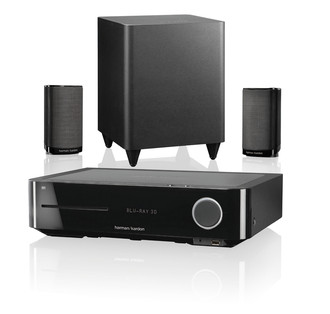

Offering a full choice of playback options, the BDS 330 stereo home theater system includes a versatile 3D Blu-ray Disc™ player, an FM tuner, a pair of midrange loudspeakers and a downward-firing, powered subwoofer with integral 60-watt amplifier. The combination delivers powerful, full-range audio playback from every direction, with an HDMI® output that provides the highest possible video and audio quality for an enveloping 3D theater-going experience. Built-in Dolby® Virtual Speaker technology helps create realistic, surround-sound enjoyment from just two speakers – quite an achievement! – while an intuitive on-screen menu helps streamline system setup and day-to-day operation.
The system’s three HDMI inputs and one HDMI output offer 3D, 30/36-bit Deep Color and Audio Return Channel (ARC) technology that deliver true, high-definition digital video (up to 1080p resolution) and full-fidelity audio through single cables without losing video or audio quality that may result from format conversions. Hooking up a home theater system has never been easier.
Features & benefits
Two 65-watt-per-channel power amplifiers

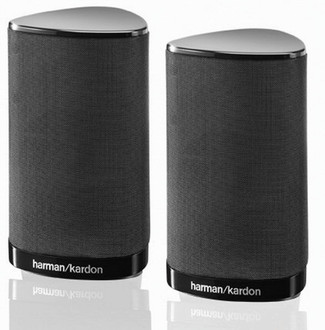

Two amplifiers rated at 65 watts per channel power the pair ofsatellite loudspeakers, which feature voice-matched, midrange drivers forconsistent sound from speaker to speaker. This amplifier-speaker combinationdramatically improves the clarity and realism of directional sounds, even atthe highest listening levels.
Fully integrated home-theater audio system

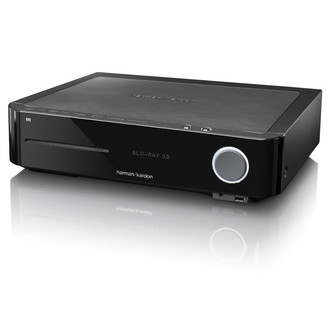

The BDS 330 is an all-in-oneentertainment solution featuring a 3D Blu-ray Disc receiver and FM receiverwith an HDMI output, two midrange loudspeakers and a downward-firing, 60-watt powered subwoofer. It contains everything youneed for great video and sound from virtually any movie or music source,combining the performance of separate components with the ease of use of asingle, fully integrated home theater audio system.
Space-saving, 60-watt powered subwoofer
Unlike conventional, front-firing subwoofers, the BDS 330’s 60-watt, powered8-inch (200-millimeter) powered sub fires downward, interacting with the floorrather than the nearby walls for enhanced bass response. Volume, phase andbass-boost controls make it easy to synchronize bass output with the satellitesand then fine-tune the system’s performance to match your room acoustics and personalpreferences.
Compact, stylish design
The BDS 330’s audio componentsdeliver full-size performance in a space-saving form that is styled tocomplement any décor.
Plays 3D sources
Connect the BDS 330 to your 3D-capableTV to bring the 3D movie-theater experience into your living room.
BD-Live interactivity
A BD-Live™ connection via your home network lets youexperience next-generation interactive content through the Internet to accesssuch exciting features as direct delivery of the latest movie trailers, plusdownloadable games, quizzes, featurettes and more.
Integrated Blu-ray Disc player, DVD/CD player and FMtuner
The BDS 330 system handles all your entertainment sources on both5-inch (127-millimeter) and 3-inch (76-millimeter) disc formats, includingBD-Video (single/double-layer), DVD-Video, DVD+R/+RW, DVD-R/-RW, CDDA (CompactDisc Digital Audio) and CD-R/RW discs. The FM tuner section features a frequencyrange of 87.5MHz to 108.0MHz.
Three HDMI inputs with 3D support and Deep Color
Three HDMI inputs with 3D and 30/36-bit Deep Color deliver HDdigital video (up to 1080p resolution) and full-fidelity audio through a singlecable. There is no loss of video or audio quality because of format conversion,just full-impact Hollywood excitement as its creators meant you to experienceit.
HDMI output with Audio Return Channel
The BDS 330 HDMI output’s AudioReturn Channel (ARC) lets you enjoy TV audio playback though the loudspeakerchannels instead of through your TV set’s small and often compromised speakers.
Front-panel USB port for audio, video and image playback
The BDS 330’s easy-to-use USBconnection lets you play music, video and picture files from portable playersor flash drives containing most types of recorded media, even MPEG-1, MPEG-2,MP3 and WMA and JPEG files.
Dolby TrueHD and DTS-HD Master Audio decoding
The BDS 330’s integral Blu-rayDisc player handles a variety of audio and video formats, including DolbyDigital, Dolby Digital Plus, Dolby TrueHD, DTS Digital, DTS-HD High ResolutionAudio, DTS-HD Master Audio™, PCM plus WMA (DRM-free version only):WMA9, CBR, VBR and MP3.
Compatibility with iPod and iPhone via The Bridge IIIP
The optional Harman Kardon® The Bridge IIIP dockingstation (sold separately) works with an Apple iPod or iPhone to expand yourentertainment options beyond DVD and Blu-ray Disc media. Once connected, TheBridge IIIP even charges your Apple device and works seamlessly with the BDS 330’s system remote control to navigate and play yourfavorite music and video.
Energy-saving subwoofer trigger output
The BDS 330’s dedicated subwoofertrigger output ensures that when you turn the system on or off, the connected subwooferalso automatically turns on or off, saving energy.
Component video input
A separate video input makes it easy to connect your BDS system toother playback devices, including game consoles.
Convenient learning remote control
A single remote controls the BDS 330system as well as your TV, cable boxes and satellite tuners.
Dolby Virtual Speaker technology
Not every room can accommodate the multiple loudspeakers requiredfor surround-sound playback. For heightened movie and music enjoyment, the BDS330’s built-in Dolby Virtual Speaker technologycreates a realistic, 5.1-channel, surround-sound experience using just twospeakers and a subwoofer channel.
Full-color and multilanguage on-screen menus
A series of highly intuitive, on-screen menus ensures that systemsetup and operation are simple and stress free, even for novices.
