Processor
| Processor frequency |
2.13 GHz |
| Number of Processing Die Transistors |
167 M |
| Processor front side bus |
1066 MHz |
| Conflict Free processor |
N |
| Processor cores |
2 |
| Processor cache type |
L2 |
| Processor codename |
Conroe |
| Physical Address Extension (PAE) |
32 bit |
| Processor cache |
2 MB |
| Maximum number of SMP processors |
1 |
| Thermal Design Power (TDP) |
65 W |
| CPU multiplier (bus/core ratio) |
8 |
| Processor lithography |
65 nm |
| Processor package size |
37.5 mm |
| Thermal Monitoring Technologies |
Y |
| Execute Disable Bit |
Y |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
61.4 °C |
Processor special features
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
27204 |
| Intel® Turbo Boost Technology |
N |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel vPro Technology |
N |
Memory
| Internal memory |
1 GB |
| Maximum internal memory |
8 GB |
| Internal memory type |
DDR2-SDRAM |
| Memory slots |
4 DIMM |
Storage
| Total storage capacity |
2000 GB |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Parallel ports quantity |
1 |
| Serial ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Design
| Optical drive type |
DVD-ROM |
| Chassis type |
Tower (5U) |
Other features
| Hard disk controller |
SATA/SAS |
Graphics
| Maximum graphics adapter memory |
16 MB |
Networking
| Networking features |
Ethernet/Fast Ethernet/Gigabit Ethernet |
Additionally
| Graphics |
RN50 |
| InTru™ 3D Technology |
N |
| Processing die size |
111 mm² |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

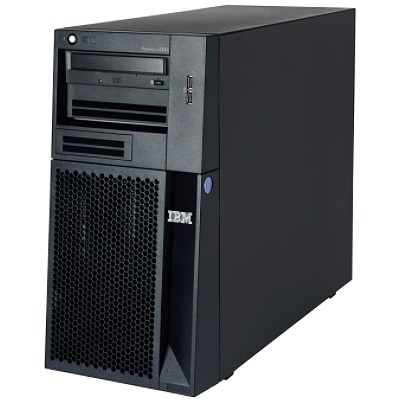

System x3200, Intel Xeon 2.13 GHz/1066 MHz (2x 1 MB L2 cache), 2 x 512 MB PC2-5300 CL5 ECC DDR2 SDRAM DIMM, 0x 0 GB hot-swap SATA/SAS HD (open bay), Combo drive, Gigabit Ethernet, 2x 430 W power supply, ATI RN50 (16 MB)
The IBM System x3200 can help lower your IT costs throughout its business lifecycle. The x3200 is not only affordable to purchase, but it’s also easy to manage and keep up to date.
Keep your business in business
With unprecedented system availability, the x3200 can help you maximize uptime for your file and print or network infrastructure applications. Select SATA, near-line SATA or Serial Attached SCSI hard disk drives (HDDs) depending on your reliability requirements. If a hard disk drive or power supply fails, the x3200 can stay up and running with redundant power supplies and hot-swap SATA and SAS HDDs.
Protect your data, your investment
Standard on select models, integrated hardware RAID-0 or -1 provides protection for your business-critical data. Optional upgrades to RAID-5 or tape backup solutions are also available.
Manage your growth
The x3200 helps minimize management costs for distributed or remote applications. It supports industry-standard, IPMI-based systems management and the IBM Remote Supervisor Adapter II for advanced hardware management—enabling your IT staff to do more with less.
