Processor
Tcase |
71.4 °C |
Processor frequency |
2.5 GHz |
Stepping |
R0 |
Processor operating modes |
64-bit |
Embedded options available |
N |
FSB Parity |
N |
Number of Processing Die Transistors |
456 M |
Processor front side bus |
1333 MHz |
Conflict Free processor |
N |
Thermal Monitoring Technologies |
Y |
Execute Disable Bit |
Y |
Processor cache |
6 MB |
Number of processors installed |
1 |
Processor cores |
4 |
Maximum number of SMP processors |
1 |
Thermal Design Power (TDP) |
95 W |
CPU multiplier (bus/core ratio) |
7.5 |
Processor lithography |
45 nm |
Processor cache type |
L2 |
Processor codename |
Yorkfield |
Processor code |
SLB69 |
Bus type |
FSB |
ECC supported by processor |
N |
Processor special features
Enhanced Intel SpeedStep Technology |
Y |
Intel FDI Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
N |
Intel vPro Technology |
N |
Intel Clear Video Technology for MID |
N |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Enhanced Halt State |
Y |
Intel Hyper-Threading Technology |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel Dual Display Capable Technology |
N |
Intel Clear Video Technology |
N |
Intel 64 |
Y |
Intel Flex Memory Access |
N |
Intel Fast Memory Access |
N |
Intel Rapid Storage Technology |
N |
Intel® Turbo Boost Technology |
N |
Intel® Insider™ |
N |
Intel® Quick Sync Video Technology |
N |
Processor ARK ID |
33931 |
Intel Trusted Execution Technology |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel Demand Based Switching |
N |
Storage
Maximum storage capacity |
3 TB |
Hot-swap |
Y |
Memory
Maximum internal memory |
8 GB |
Memory slots |
4 DIMM |
Internal memory |
1 GB |
Internal memory type |
DDR2-SDRAM |
Memory clock speed |
667 MHz |
ECC |
Y |
Graphics
Maximum graphics adapter memory |
16 MB |
Other features
RAID controller type |
ServeRAID 8k-I |
Ports & interfaces
Parallel ports quantity |
1 |
Serial ports quantity |
2 |
VGA (D-Sub) ports quantity |
1 |
Networking
Networking features |
Gigabit Ethernet |
Additionally
Graphics |
ES1000 |
Processing die size |
164 mm² |
Ethernet LAN (RJ-45) ports quantity |
1 |
InTru™ 3D Technology |
N |
Intel AES New Instructions |
N |
1x Quad-Core Intel Xeon X3320 2.5 GHz/1333 MHz (6 MB L2), 2x 512 MB PC2-5300 CL5 ECC DDR2 SDRAM DIMM, 0x 0 GB SAS/SATA hot-swap HDD (open bay), Multi-Burner, Gigabit Ethernet, ATI ES1000 (16 MB), 1x 400 W
- Manage growth and risk with new technologies that deliver configuration flexibility, data protection and application performance
- Manage complexity with advanced monitoring capabilities that include integrated and remote management options
- Standard scalability and reliability features deliver high levels of system availability—at a value price

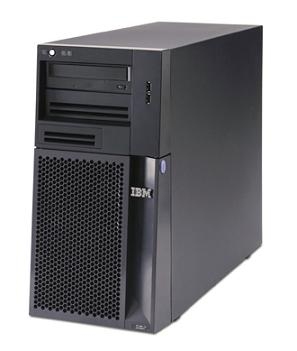

The IBM System x3200 M2 is an affordable, single-socket tower server that offers more performance, configuration flexibility and availability features than many other servers in its class. From network infrastructure to distributed applications to front-end workloads, the x3200 M2 is designed to meet a wide range of business needs—and help you adapt to changing business requirements.
