Processor special features
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
47923 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
Processor
| ECC supported by processor |
Y |
| Tcase |
77.6 °C |
| Maximum internal memory supported by processor |
288 GB |
| Processor frequency |
2.66 GHz |
| Stepping |
B1 |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor cache |
12 MB |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
80 W |
| CPU multiplier (bus/core ratio) |
20 |
| Processor lithography |
32 nm |
| Processor package size |
42.5 mm |
| Processor boost frequency |
2.93 GHz |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
Storage
| RAID support |
Y |
| Maximum storage capacity |
4 TB |
Memory
| Maximum internal memory |
128 GB |
| Memory slots |
8x DIMM |
| Memory clock speed |
1333 MHz |
| Internal memory |
8 GB |
| Internal memory type |
DDR3-SDRAM |
Other features
| Disk array controller |
ServeRAID |
| Video card resolution |
1600 x 1200 |
| Video adapter, bus |
PCIe |
| CD read speed |
16 x |
| Supported data transfer rates |
1000Mbps,100Mbps,10MBps |
Design
| Chassis type |
Tower |
| Optical drive type |
DVD-ROM |
Graphics
| Maximum graphics adapter memory |
16 MB |
Networking
| Network ready |
Y |
| Supported network protocols |
10Base-T, 100Base-TX, 1000Base-T |
Additionally
| Intel AES New Instructions |
Y |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5.86 GT/s |
| Graphics |
G200 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

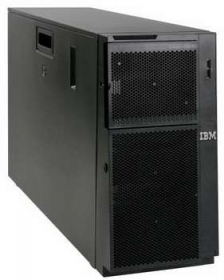

System x3400 M3 - Intel Xeon Processor E5640 (12M Cache, 2.66 GHz, 5.86 GT/s), 8192MB RAM, 0 GB HDD, 16MB RAM, Tower
Highlights
- Provides optimum performance and processing capability at a lower cost
- Offers large storage capacity and flexible configurations to scale as needs grow
- Helps reduce energy costs and ease management with efficient design
Achieve IT goals with a sustainable investment
The IBM System x3400 M3 leverages the latest Intel Xeon processors and memory capacity to deliver greater processing power and flexibility. Enhanced with cost-optimized RAID technology, mainframe-inspired reliability and additional memory, the x3400 M3 can provide superior performance per cost for virtualization and other intensive applications.
Grow affordably with flexible upgrades
The x3400 M3 offers flexible configuration options to help you scale easily as business grows. Higher storage capacity as well as choice in storage interface lets you transform your business as you require. Select the right combination of hard disk drive size, processor and memory capacity for today, and easily incorporate more tomorrow.
