Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Memory bandwidth (max) |
25.6 GB/s |
| ECC |
N |
| Supported memory types |
DDR3L-SDRAM |
| Memory voltage |
1.35 V |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Performance
| BIOS memory size |
64 MB |
| BIOS type |
EEPROM |
| Back-to-BIOS button |
N |
| PC health monitoring |
Temperature |
| Intel Visual BIOS |
Y |
| Intel Express BIOS update |
Y |
| Number of displays supported |
3 |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
2 |
| Supported storage drive types |
SSD |
Motherboard
| Supported processor frequency (max) |
1.3 GHz |
| Number of processors supported |
1 |
Other features
| Number of SATA connectors |
2 |
| Package size |
116.6 x 112 x 34.5 mm |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express slots version |
2.0 |
Processor
| Processor boost frequency |
2.6 GHz |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
15 W |
| L3 cache |
3 MB |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.3 GHz |
Processor special features
| Intel Rapid Storage Technology |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
Y |
| Intel Matrix Storage Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Ports & interfaces
| Combo headphone/mic port |
Y |
| Mini HDMI ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| Consumer infrared headers |
Y |
| DC-in jack |
Y |
| DisplayPort version |
1.2 |
Audio
| Audio output channels |
7.1 channels |
Design
| LED indicators |
HDD, Power, Reset |
| Cooling type |
Active |
Networking
| Wi-Fi |
N |
| Bluetooth |
N |
| Networking features |
Gigabit Ethernet |
Power
| Power supply |
65 W |
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Packaging content
| Quick start guide |
Y |
| Power cord included |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Mini DisplayPort quantity |
1 |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics 5000 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

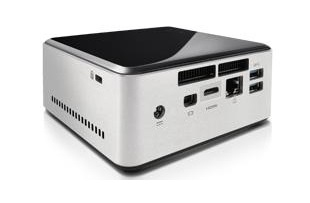

NUC Kit D54250WYKH
Sleek, shiny, and with a smaller footprint than a wireless modem, the Intel® NUC with the 4th generation Intel® Core™ i5 processor is at home in your living room, your office, or your media center. The D54250WYK SKU of Intel NUC is equipped with Intel® Turbo Boost Technology 2.0, automatically allowing processor cores to safely run faster than the base operating frequency. It also includes Intel® Rapid Start Technology, ensuring you are quickly up and running, and Intel® Smart Connect Technology to keep you up to date at all times.
The Intel NUC comes complete with Intel® HD Graphics 5000 to ensure a brilliant HD experience, Intel® Quick Sync Video for fast video encoding, and DisplayPort 1.2 for driving 4k displays. Couple this with a stereo/mic jack along with four USB 3.0 ports and an infrared sensor for your remote control, and you can create a home entertainment system, a gaming machine, a digital jukebox, or all of the above. You can immerse yourself in movies, TV, or games in 4 inches square without the need for discrete hardware. The Intel NUC: as small as a game controller, as powerful as a jackhammer.
