Processor special features
| Intel 64 |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Conflict Free |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
Y |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Memory
| Supported memory clock speeds |
1600 MHz |
| Memory bandwidth (max) |
34.1 GB/s |
| ECC |
N |
| Supported memory types |
DDR3L-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Y |
Motherboard
| Number of processors supported |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| Processor family |
Intel Core i3-6xxx |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.3 GHz |
Networking
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Design
| LED indicators |
HDD, Power, WLAN |
| Cooling type |
Passive |
Packaging content
| Drivers included |
Y |
| Quick start guide |
Y |
| Power cord included |
Y |
Ports & interfaces
| USB 3.1 (3.1 Gen 2) Type-C ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DisplayPort version |
1.2 |
Expansion slots
| PCI Express slots version |
3.0 |
Power
| Power supply type |
External AC adapter |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel SoC |
| Graphics |
HD Graphics 520 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Core i3-6100U, 2.3 GHz, 2 x DDR3L-1600, HD Graphics 520, DisplayPort, HDMI, 1 x 2.5" SATA, SD, USB, Bluetooth, LAN, Wi-Fi, 146.4mm x 126.5mm x 60.5mm

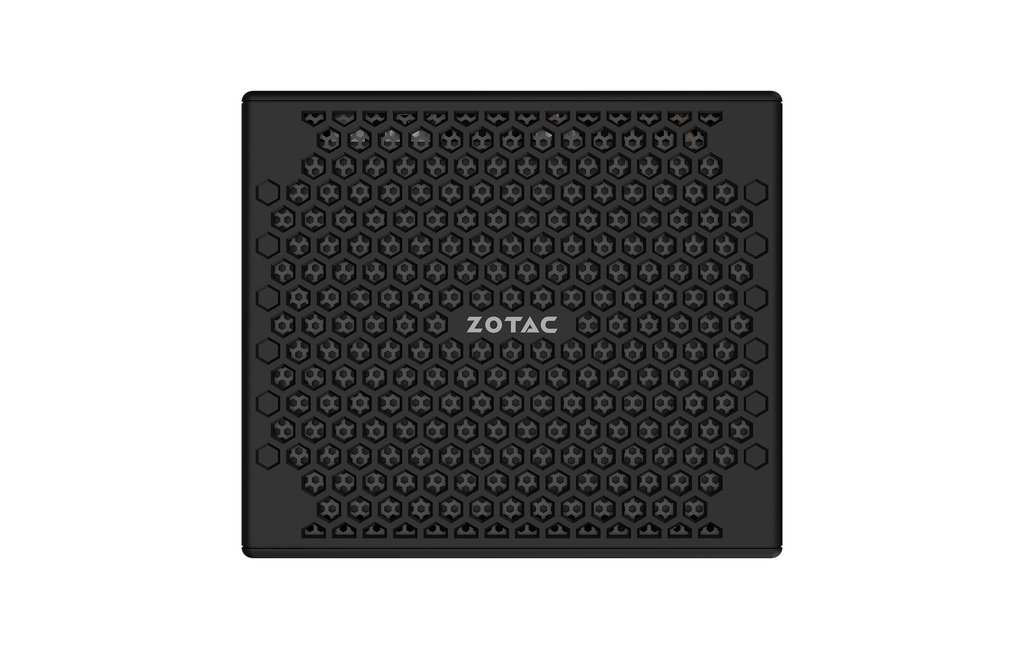

Redefining workstation performance and reliability in the most compact of solutions - the ZBOX nano. Equipped with Intel's 6th Generation Skylake Core i3 CPU, this solution is the answer to everyday work and entertainment needs. Whether it is number crunching or full HD moving playing, this unit has the muscles to handle these tasks easily. Combined with robust connectivity potential, this is a green powerhouse that provides amazing desktop experience in the smallest form factor.
