Memory
Supported memory clock speeds |
1333, 1600 MHz |
Memory bandwidth (max) |
25.6 GB/s |
ECC |
N |
Supported memory types |
DDR3L-SDRAM |
Memory channels |
Dual |
Number of memory slots |
2 |
Maximum internal memory |
16 GB |
Motherboard
Supported processor frequency (max) |
2.6 GHz |
Number of processors supported |
1 |
Other features
Number of SATA connectors |
1 |
Number of processors installed |
1 |
Power |
65 W |
Expansion slots
Mini PCI Express slots |
2 |
PCI Express slots version |
2.0 |
Processor
Processor boost frequency |
2.6 GHz |
Processor lithography |
22 nm |
Thermal Design Power (TDP) |
15 W |
Processor cores |
2 |
Built-in processor |
Y |
Processor frequency |
1.3 GHz |
Processor special features
Intel Rapid Storage Technology |
Y |
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
Y |
Intel Trusted Execution Technology |
N |
Intel Smart Connect Technology |
Y |
Intel® Quick Sync Video Technology |
Y |
Intel® Insider™ |
Y |
Intel 64 |
Y |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
Y |
Intel® Identity Protection Technology (Intel® IPT) |
Y |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
2.0 |
Intel® Secure Key |
Y |
Intel® My WiFi Technology (Intel® MWT) |
Y |
Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel TSX-NI |
Y |
Intel Matrix Storage Technology |
Y |
Intel® Wireless Display (Intel® WiDi) |
Y |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Storage
Number of storage drives supported |
2 |
Graphics
On-board graphics adapter |
Y |
Graphics adapter family |
Intel |
Ports & interfaces
Mini HDMI ports quantity |
1 |
Headphone outputs |
1 |
Microphone in |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
Performance
Number of displays supported |
3 |
Additionally
InTru™ 3D Technology |
Y |
Mini DisplayPort quantity |
1 |
Intel HD Audio Technology |
Y |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

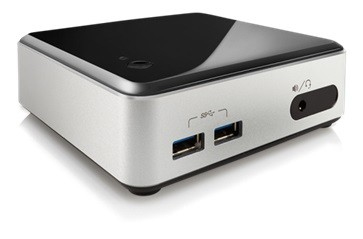

NUC Kit D54250WYK
Sleek, shiny, and with a smaller footprint than a wireless modem, the Intel® NUC with the 4th generation Intel® Core™ i5 processor is at home in your living room, your office, or your media center. The D54250WYK SKU of Intel NUC is equipped with Intel® Turbo Boost Technology 2.0, automatically allowing processor cores to safely run faster than the base operating frequency. It also includes Intel® Rapid Start Technology, ensuring you are quickly up and running, and Intel® Smart Connect Technology to keep you up to date at all times.
The Intel NUC comes complete with Intel® HD Graphics 5000 to ensure a brilliant HD experience, Intel® Quick Sync Video for fast video encoding, and DisplayPort 1.2* for driving 4k displays. Couple this with a stereo/mic jack along with four USB 3.0 ports and an infrared sensor for your remote control, and you can create a home entertainment system, a gaming machine, a digital jukebox, or all of the above. You can immerse yourself in movies, TV, or games in 4 inches square without the need for discrete hardware. The Intel NUC: as small as a game controller, as powerful as a jackhammer.
