Other features
| Uncorrectable Bit Error Rate (UBER) |
less than 1 sector per 1e17 bits read |
| Processor lithography |
20 nm |
| Internal |
Y |
Performance
| SSD usage tag |
Data center |
| Memory type |
MLC |
| Read speed |
2600 MB/s |
| Write speed |
1250 MB/s |
| Solid-state drive capacity |
1200 GB |
| SSD ARK ID |
80990 |
| Random write (100% span) |
50000 IOPS |
| Random read (100% span) |
450000 IOPS |
| Intel High Endurance Technology (HET) |
Y |
| PCI Express interface data lanes |
x4 |
| Latency (read) |
20 µs |
| Latency (write) |
20 µs |
| Enhanced Power Loss Data Protection technology |
Y |
| SSD temperature monitoring |
Y |
| Lithography |
20 nm |
| Solid-state drive interface |
PCI Express 3.0 |
Technical details
| Operating shock |
50 G |
| Status |
Launched |
| Maximum non-operating altitude |
12192 m |
| Non-operating vibration |
3.13 G |
| Operating vibration |
2.17 G |
| Sequential writing speed |
1250 MB/s |
| Sequential reading |
2600 MB/s |
| Market segment |
SRV |
| Product brief URL |
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/intel-ssd-dc-family-for-pcie-brief.pdf |
| SSD shock |
50 G Trapezoidal, 170 in/s |
| SSD power consumption (active) |
15W (write), 9W (read) |
| SSD power consumption (idle) |
4W |
| SSD interface |
PCIe NVMe 3.0 x4 |
| SSD endurance rating |
6.57 PBW (JEDEC Workload) |
| SSD weight |
195gm |
| Born on date |
Q2'14 |
| Drive capacity |
1200 GB |
| Launch date |
2014-06-03T00:00:00 |
| Product name |
Intel SSD DC P3600 Series (1.2TB, 1/2 Height PCIe 3.0, 20nm, MLC) |
| Maximum operating altitude |
3048 m |
Design
| SSD form factor |
HHHL (CEM2.0) |
| Product family |
Data center SSD |
| Product series |
Intel DC P3600 |
| Product codename |
Fultondale |
Power
| Power consumption (idle) |
4 W |

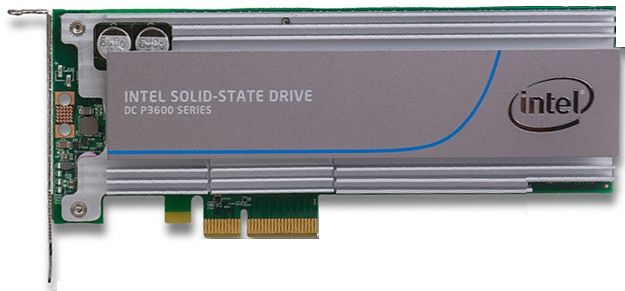

SSD DC P3600 Series (1.2TB, 1/2 Height PCIe 3.0, 20nm, MLC)
Breakthrough performance
The Intel Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel Xeon processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage
Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution
Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability
Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel SSD Data Center Tool provides a powerful set of management capabilities.
