Other features
| Uncorrectable Bit Error Rate (UBER) |
1 sector per 10^17 bits read |
| Processor lithography |
16 nm |
| Internal |
Y |
Performance
| SSD usage tag |
Data center |
| Memory type |
MLC |
| Read speed |
500 MB/s |
| Write speed |
430 MB/s |
| Solid-state drive capacity |
1600 GB |
| SSD ARK ID |
86192 |
| Random write (100% span) |
15200 IOPS |
| Random read (100% span) |
65000 IOPS |
| Intel High Endurance Technology (HET) |
N |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
N |
| Random write (4KB) |
15200 IOPS |
| Random read (4KB) |
65000 IOPS |
| Latency (read) |
55 µs |
| Latency (write) |
66 µs |
| Enhanced Power Loss Data Protection technology |
Y |
| Hardware encryption |
Y |
| SSD temperature monitoring |
Y |
| End-to-End Data Protection |
Y |
| Lithography |
16 nm |
| Solid-state drive interface |
Serial ATA III |
Technical details
| Non-operating shock |
1000 G |
| Operating shock |
1000 G |
| Status |
Launched |
| Non-operating vibration |
1000 G |
| Operating vibration |
1000 G |
Design
| SSD form factor |
2.5" |
| Product family |
Data center SSD |
| Product series |
Intel DC S3510 |
| Product codename |
Haleyville |
Power
| Power consumption (idle) |
0.7 W |

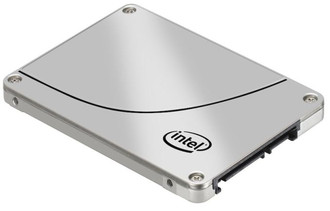

SSD DC S3510 Series (1.6TB, 6.35 cm (2.5 ") SATA 6Gb/s, 16nm, MLC)
Cost-Effective Performance and Reliability
Experience low total cost of ownership and exceptional performance, reliability, and strong data protection with the Intel® Solid-State Drive Data Center S3510 Series. The Intel SSD DC S3510 Series optimizes data centers, cloud, and intelligent systems running read-intensive applications such as boot, web servers, operational databases, and analytics.
The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/460 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 68,000/20,000. Applications benefit from 55 μs typical latency with max read latencies of 500 μs 99.9 percent of the time.
Combining performance with low typical active power (less than 5.6 watts) the Intel SSD DC S3510 Series meets the demanding needs of the data center with low total cost of ownership, ideal for server or application upgrades.
