Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Memory bandwidth (max) |
25.6 GB/s |
| ECC |
N |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.35, 1.5 V |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Performance
| BIOS memory size |
64 MB |
| BIOS type |
EEPROM |
| Back-to-BIOS button |
N |
| PC health monitoring |
Temperature |
| Intel Visual BIOS |
Y |
| Intel Express BIOS update |
Y |
| Number of displays supported |
2 |
Motherboard
| Supported processor frequency (max) |
1.8 GHz |
| Number of processors supported |
1 |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express slots version |
2.0 |
Storage
| Number of storage drives supported |
1 |
| Supported storage drive types |
SSD |
| Card reader integrated |
N |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Ports & interfaces
| Combo headphone/mic port |
N |
| Thunderbolt ports quantity |
1 |
| S/PDIF out port |
N |
| Microphone in |
N |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DisplayPort version |
1.1a |
Processor
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
17 W |
| L3 cache |
3 MB |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.8 GHz |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Design
| Product family |
Intel NUC |
| Product series |
Intel NUC kit |
| Cooling type |
Active |
Certificates
| Safety |
UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM-019-SCFI-1998, GOST-R |
Power
| Power supply |
65 W |
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel QS77 Express |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics 4000 |
| Ethernet LAN connection |
N |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

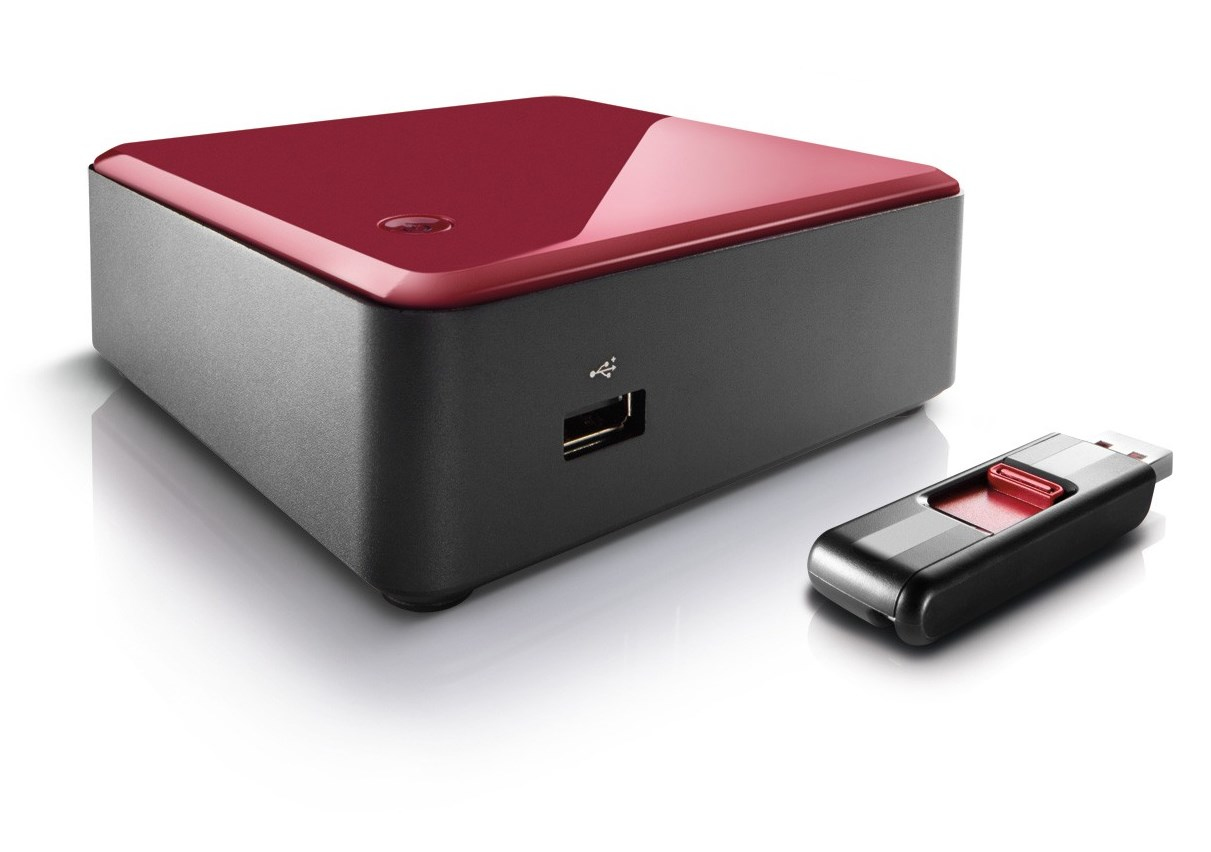

The Intel® NUC Kit DC3217BY delivers stunning visuals and responsive performance in a pocket-sized solution. With a Visibly Smart Intel® Core™ i3 processor, the Intel® NUC is a fully-scalable and complete unit of computing using the smallest possible form factor. What’s more amazing is that such a small device can offer so much power in a flexible, customizable package.
Experience your movies, photos, and games smoothly and seamlessly. Effortlessly move between applications with smart multitasking delivered by Intel® Hyper-Threading Technology. Dramatically increase data transfer rates and daisy-chain peripherals with Thunderbolt™ technology. Get a difference in performance you can truly see and feel.
