Technical details
| Voltage Standing Wave Ratio (VSWR) |
2.5:1 |
| Output impedance |
75 Ω |
| Diameter |
23 mm |
| Cross-polarization isolation |
22 dB |
| Gain ripple (±) |
0.75 dB |
| Input frequency range |
11.7 - 12.75 GHz |
| Output frequency range |
1100 - 2150 MHz |
| Noise figure |
0.7 dB |
| Conversion gain |
65 dB |
| Initial accuracy (±) |
1 MHz |
| Temperature drift (±) |
3 MHz |
| Image rejection |
40 dBmW |
| High band LO frequency |
10.6 GHz |
| Low band LO frequency |
9.75 GHz |
| Spurious emission |
-60 dBmW |
| Low band output frequency range |
950 - 1950 MHz |
| High band output frequency range |
1100 - 2150 MHz |
| High band input frequency range |
11.7 - 12.75 GHz |
| Low band input frequency range |
10.7 - 11.7 GHz |
| Oscillator frequency |
10.6 GHz |
| Local Oscillator (LO) phase noise (10 kHz) |
-90 dBc/Hz |
| Conversion gain range |
50 - 65 dB |
Low Band Input 10.7 ~ 11.7 GHz, Low Band Output 950 ~ 1950 MHz, 0.2 dB Typ. (0.7 dB Max.), 75 Ω, 485 g

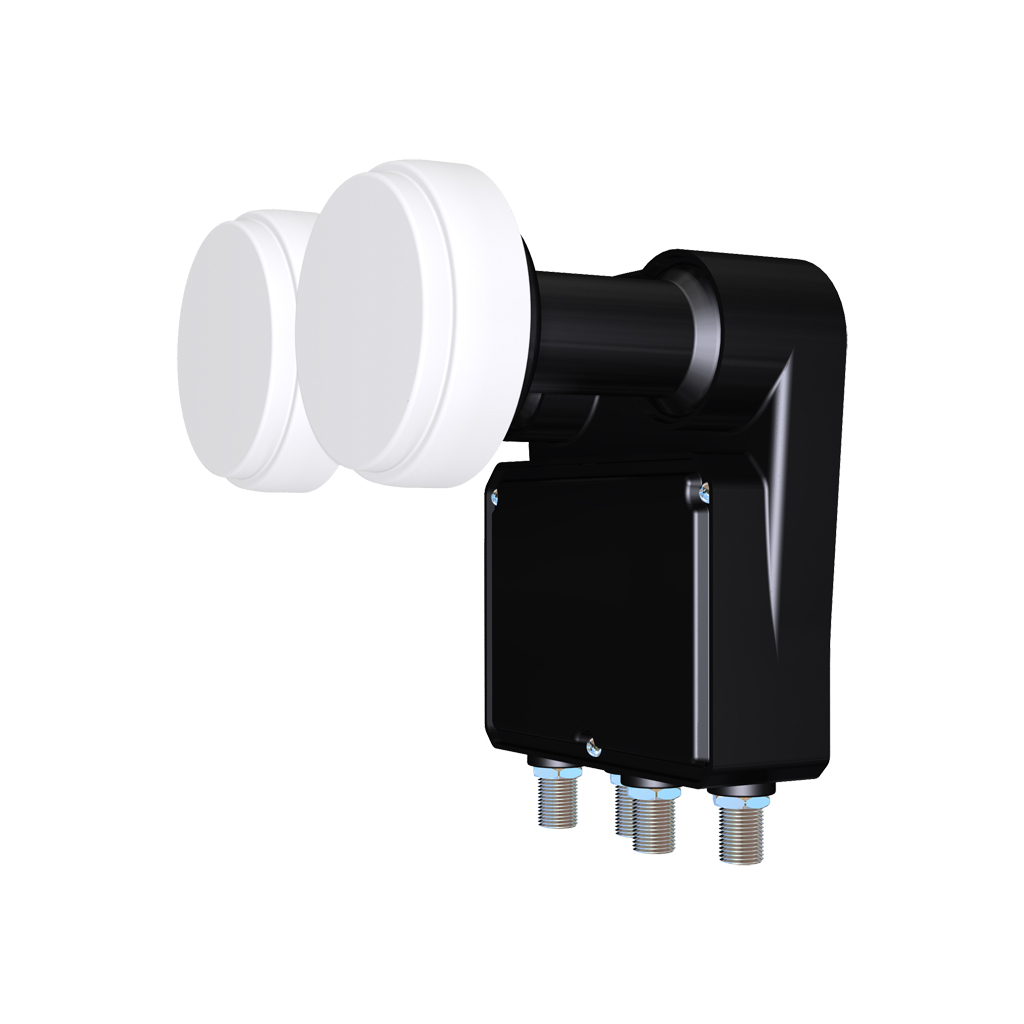

Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for satellite broadcast reception (on an 80cm dish antenna) of any two satellites spaced with 6°. This LNB enables the signal distribution to maximum four Set Top Boxes with Single Tuner (or two STBs with Twin Tuner). It is optimized for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.
<b> Main Features</b>
- Low Phase Noise, DVBS2 (HDTV) compliant
- Low Noise Figure (0.2 dB)
- Low Power Consumption
- Very high Cross Polarization Isolation
- Very high Frequency Stability
