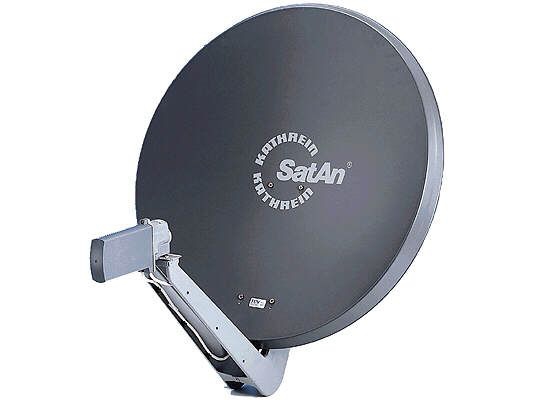

Kathrein CAS 90 Graphite satellite antenna

CAS 90 parabolic antenna The parabolic antenna CAS 90 are exclusively destined for:
– reception of satellite signals
– utilisation as a domestic antenna. A domestic or private antenna is defined acc. to DIN 4131 as an
antenna with a free mast length of 6 m and a bending moment at the fixing point of up to 1650 Nm.
– installation on buildings not subject to oscillations
It is important to observe the maximum load as mentioned in the technical data. If that value is
exceeded, antenna parts can break loose.
The parabolic antennas CAS 09, CAS 90, CAS 90/R can be equipped with
- one feed system (LNB) for reception of signals from satellites occupying the same orbital position
- two feed systems for multifeed reception from satellites being 3°-4° or 6° apart
With the aid of the additionally available multifeed adapter plate ZAS 90, three feed systems can be fixed on the parabolic antenna. Neither the feed systems nor the mounting instructions for the feed systems are in the scope of supply of the antenna.
