Kathrein VCN 20

Kathrein VCN 20

EAN: 4021121080234
MPN: 230243
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ...
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Power

Input frequency 50/60 Hz
Input voltage 230 V

Technical details

Gain (forward path) 10 dB
Protection class II

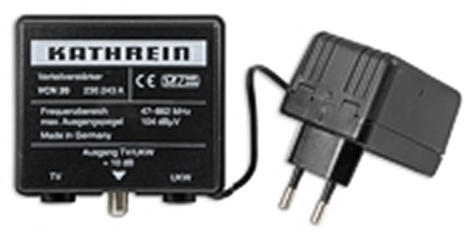

Distribution amplifier 10dB, 47-862MHz, to plug on antenna outlets, with plug-psu, 3 outputs: TV/Radio/output amplified (F connector) - Plug-in power supply unit with 1.8m cable and standard plug.
- To extend all CATV systems inside an apartment without the need to change the already existing installation.
- To plug onto antenna outlets with IEC socket/IEC plug.
- For all TV and VHF channels.
- Additional output (F connector) to connect more antenna outlets (+10dB gain).
- Ambient temperature range: 0°C to +40°C.
- Packing unit/weight (pc./kg): 1 (50)/0.4.
Фотографии
