Design
| Supported motherboard form factors |
Micro-ATX, Mini-ITX |
| Number of 3.5" bays |
3 |
| Side window |
N |
| Number of 2.5" bays |
4 |
| Maximum graphics card length |
280 mm |
| Maximum CPU cooler height |
165 mm |
| Number of expansion slots |
2 |
| Form factor |
Midi-Tower |
| Type |
PC |
Storage
| Supported hard disk drive sizes |
2.5, 3.5 " |
Cooling
| Side fans diameters supported |
120 mm |
| Maximum side fans |
1 |
| Side fans installed |
1x 120 mm |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |

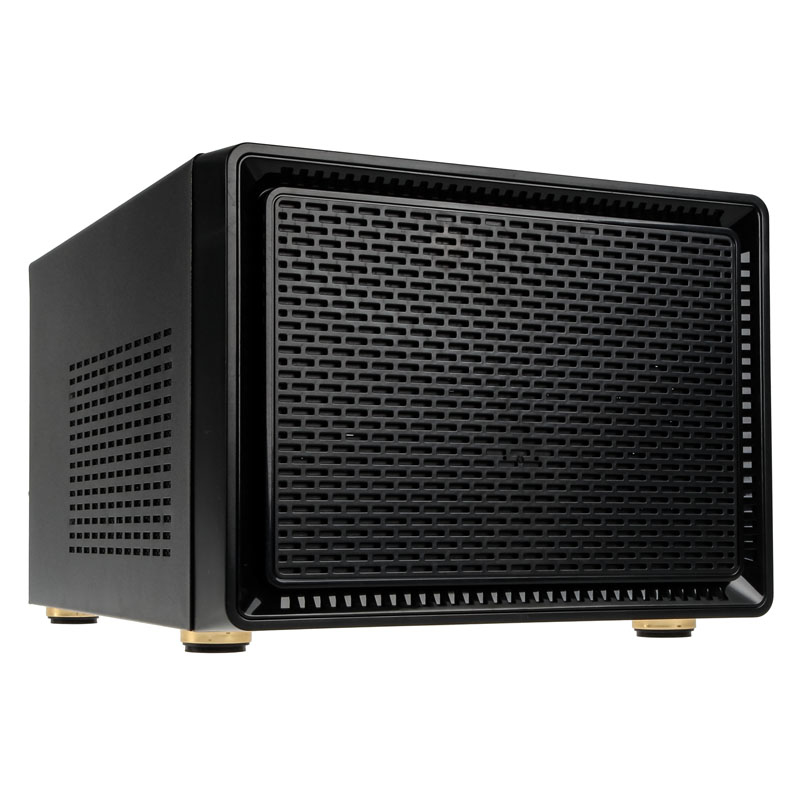

Satellite Mini-ITX/Micro ATX, Midi-Tower, 1 x 120 mm, 2 x USB 3.0, 2 x Audio In/Out, Black
Product information - Satellite Mini-ITX / Micro ATX housing - black
The first impression of the Satellite from Kolink mag deceive, but in this small and discreet housing of the Hungarian manufacturer gaming hardware paired with an ATX power supply. A pre-installed fan and many mesh and mesh surfaces ensure sufficient cooling of the components.
The entire front is in principle a large black mesh surface, which makes the case very discreet. The I / O panel in the front edge of the lid is equipped with two USB 3.0 ports and includes two audio connectors (in / out), status LEDs, power and reset buttons. In the rear area of the cover is a further mesh grating,
More space than you think: gaming hardware and up to 4 SSDs
Depending on the size of the built-in ATX power supply , dual-slot graphics cards with a length of up to 280 mm can be installed in this small case. An up to 220 mm long power supply restricts the GPUs to 190 mm, with a PSU up to 140 mm, a graphics card up to 280 mm can be installed. CPU coolers have impressive 165mm in height, which can be mounted on a mini ITX motherboard or certain micro ATX motherboards. Attention
Only extremely compact Micro ATX motherboards with a maximum of three expansion slots and the dimensions 22.6 cm x 18.0 cm can be installed!
Up to four fast 2.5-inch SSDs can be found at two brackets at home, but can also take up to three 3, 5 inch hard drives. One of these brackets is located under the lid and either suspends two SSDs or two HDDs, while the left-side bracket can accommodate two 2.5-inch drives or a single 3.5-inch hard drive.
A single 120 mm casing fan is installed in the rear and two hose openings are located above the two PCI screens for external water cooling. The combination of discreet design and extensive hardware support makes the Satellite an insider tip among the mini-performance enclosures. Technical details: 5-inch drives, or a single 3.5-inch hard drive. A single 120 mm casing fan is installed in the rear and two hose openings are located above the two PCI screens for external water cooling. The combination of discreet design and extensive hardware support makes the Satellite an insider tip among the mini-performance enclosures. Technical details: 5-inch drives, or a single 3.5-inch hard drive. A single 120 mm casing fan is installed in the rear and two hose openings are located above the two PCI screens for external water cooling. The combination of discreet design and extensive hardware support makes the Satellite an insider tip among the mini-performance enclosures.
