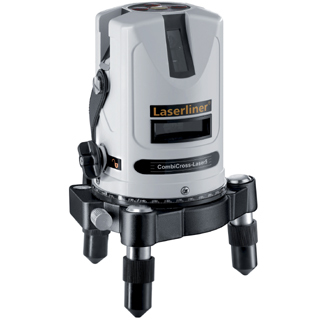

Laserliner CombiCross-Laser 5 Line level 50m 635 nm (< 5 mW)

Laserliner CombiCross-Laser 5 Line level 50m 635 nm (< 5 mW)

EAN: 4021563682263
MPN: 057.100A
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Design

Tripod mountable Y
Type Line level

Features

Levelling accuracy (±) 0.2 mm/m
Maximum range 50 m
Laser class 2M
Laser diode 635 nm (< 5 mW)
Colour of laser beam Green/Red

Additionally

Self-levelling range (±) 2 °
max. 50 m radius, 650 nm, class 2M, < 5 mW, IP 54 Green cross-line laser with 3 additional red laser lines and plumb laser

- Green laser technology: because of the physiology of the human eye, green lasers are more visible than red lasers by an order of magnitudes. This makes these lasers easily visible over longer distances and in bright ambient light.
- PowerBright-Laser: Special high-performance laser diodes project extremely visible laser lines.
- The 4 vertical lines are aligned at right angles to one another.
- Automatic Level: automatic alignment by virtue of a magnetic pendulum system.
- A simple, precise plumb function is afforded by the additional plumb laser at the bottom and the laser cross at the top.
- Out-Of-Level: is indicated by optical signals when the unit is outside its self-levelling range.
- Connectible laser lines.
- RX-/GRX-Ready: Together with an optional laser receiver, the integrated hand-held receiver modes permit detection of the red laser lines (RX-Ready) and green laser lines (GRX-Ready) over long distances and under unfavourable light conditions.
- The pivoted housing can be turned with a vernier adjustment mechanism to permit exact positioning of laser lines.
- Illuminated vial and height-adjustable feet for preliminary adjustment of the unit.
- Mains operation possible using additional mains unit.
- Transport lock: A pendelum lock protects unit during transport.
